14.2.3 Installing the CMOS battery

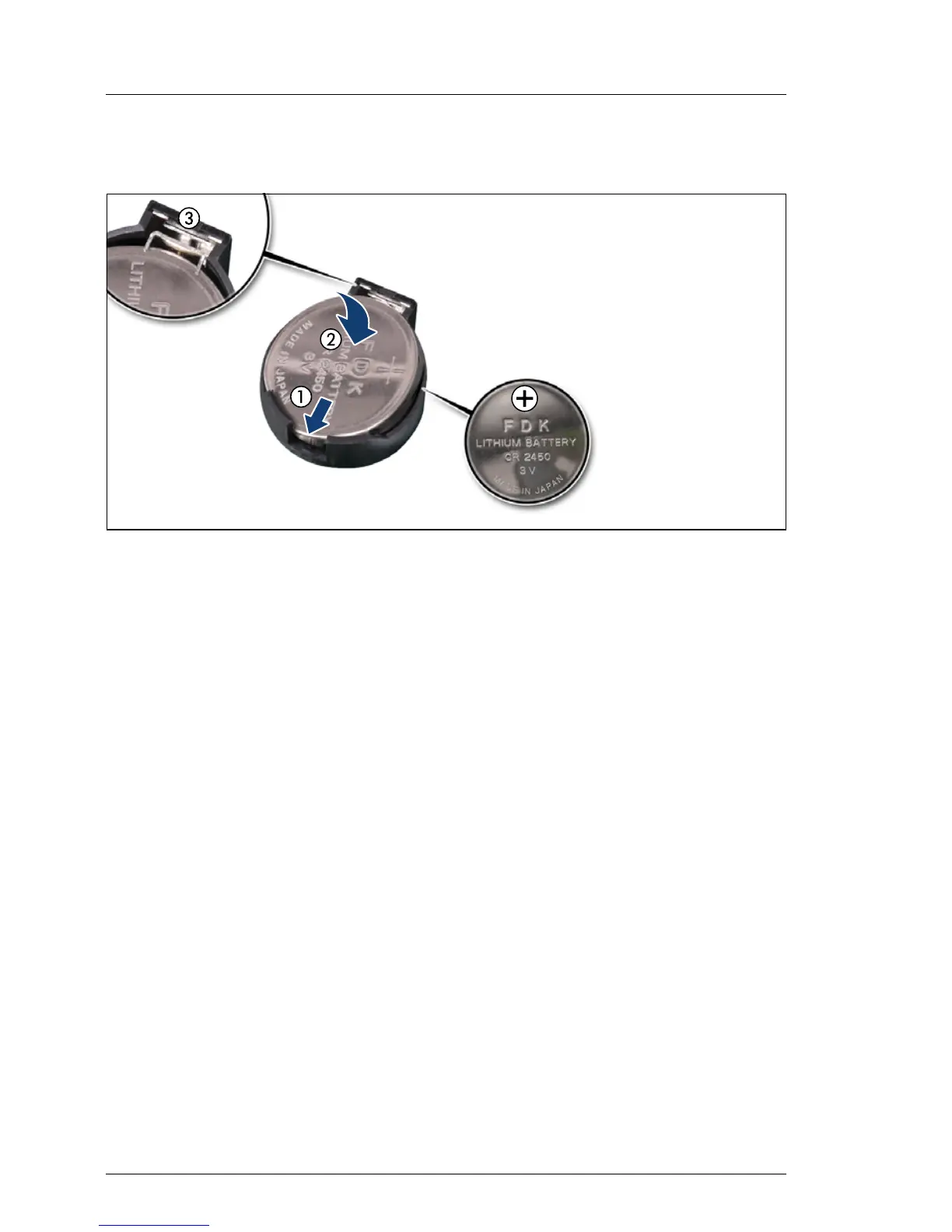

Figure 255: Installing the CMOS battery
Ê At a slight angle, fit the new CMOS battery into its socket as shown (1).
V CAUTION!
Ensure to insert the CMOS battery with the positive pole (label side)
facing up as shown (see close-up).
Ê Fold down the CMOS battery (2) until it locks in place.
Ê Ensure that the locking spring (3) is properly engaged.
14.2.4 Concluding steps
Ê Dispose of the CMOS battery in accordance with local regulations
concerning special waste.
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê Verify whether the backup data on the Chassis ID EPROM has been
restored to the system board as described in section "Verifying system
information backup / restore" on page 87.
Ê "Verifying the system time settings" on page 98
