17.2.1.5 PSU indicator (only hot-plug PSUs)

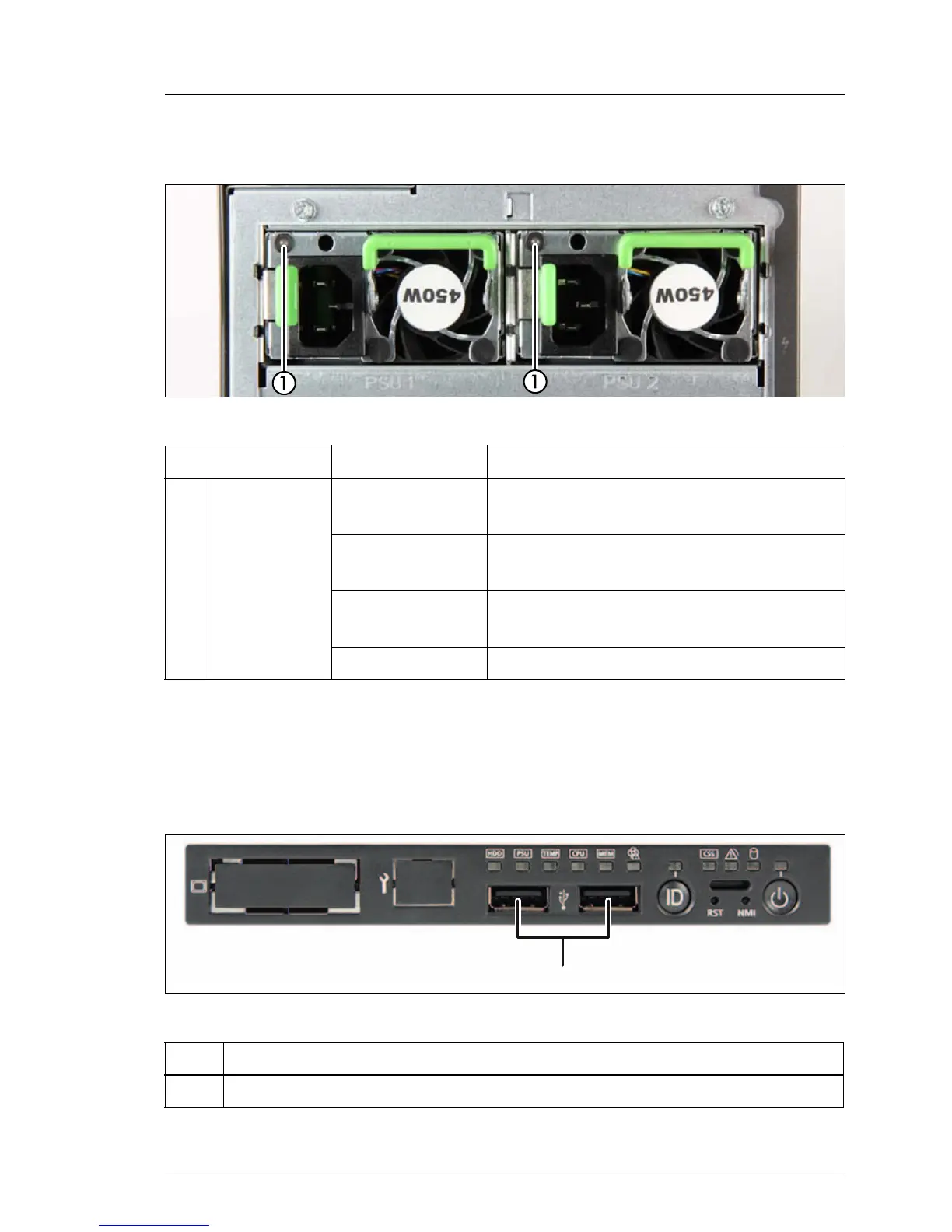

Figure 320: PSU indicator
17.2.2 Connectors and indicators on the front panel
17.2.2.1 Front panel connectors
Figure 321: Front panel connectors
Indicator Status Description
1
PSU
operating
status
green on
Server is switched on and functioning
properly
green flashing
Server is switched off, main voltage is
present (Standby mode)
orange on
PSU failure (over / under voltage, over
temperature or fan failure)
orange flashing Overload warning
Pos. Component
1 2x USB connectors
