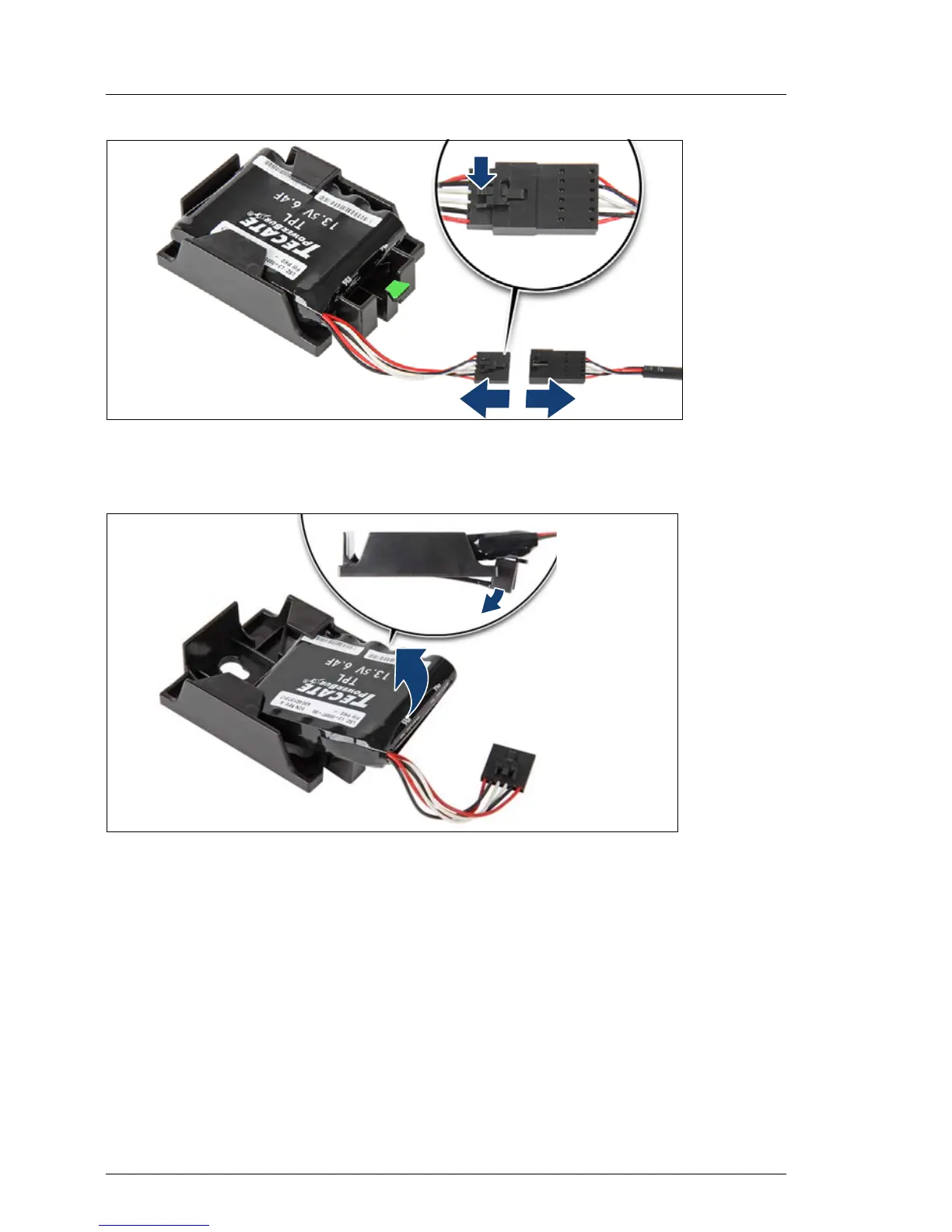

Figure 181: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
Figure 182: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
9.5.5.3 Concluding steps
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê If applicable, "Updating RAID controller firmware" on page 88
Ê "Enabling SVOM boot watchdog functionality" on page 96
