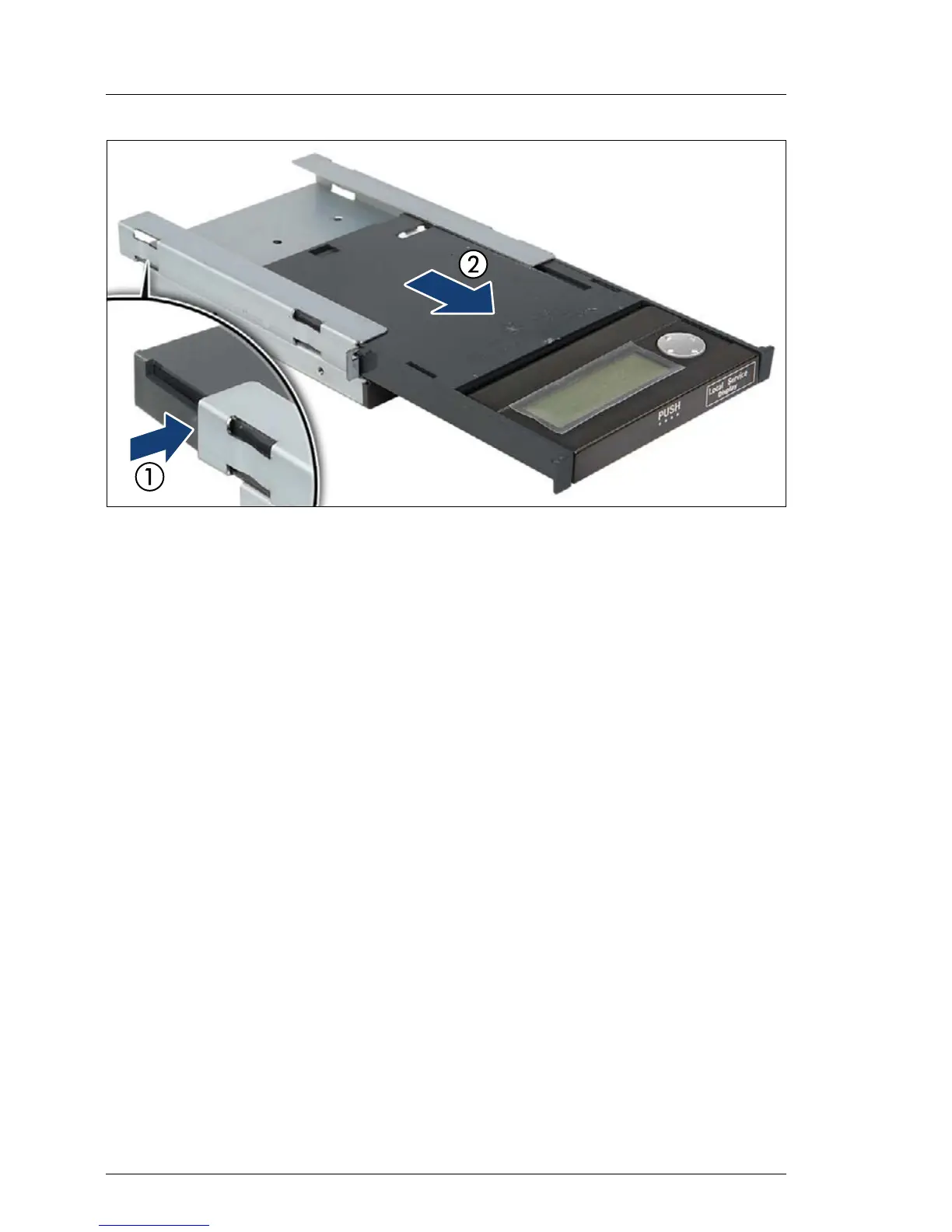

Figure 234: Removing the LSD module from the 3.5-inch installation frame
Ê Press in on the locking latch (see close-up) to disengage the LSD module
(1).
Ê Pull the LSD module out of the 3.5-inch installation frame (2).
Ê If the removed LSD module is not to be replaced by a new module, reinstall
the LSD dummy cover.
12.5.2.5 Installing the Multibay box
Ê Install the Multibay box as described in section "Installing the Multibay box"
on page 313.
12.5.2.6 Concluding steps
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
