Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

148 Upgrade and Maintenance Manual TX2540 M1
Hard disk drives / solid state drives

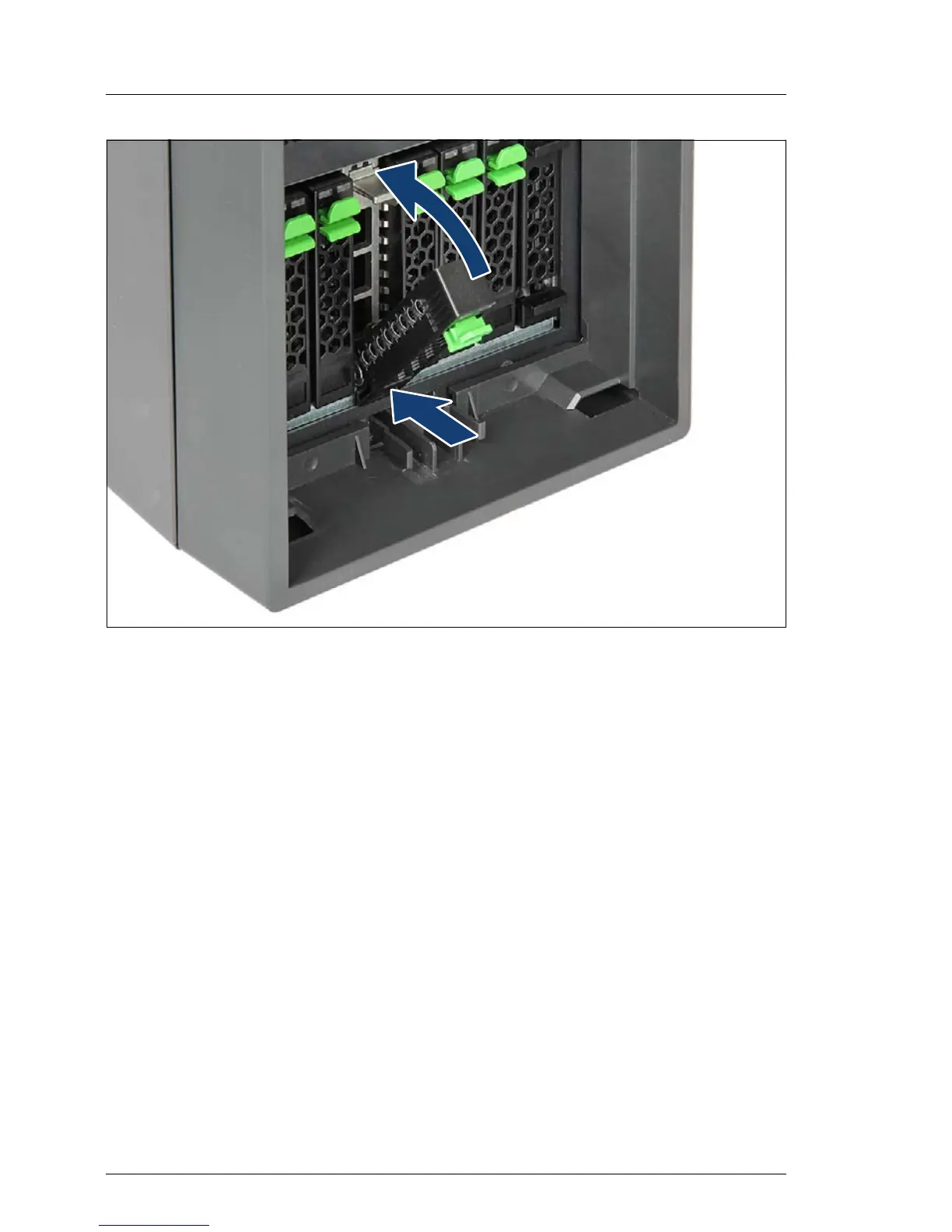

Figure 70: Inserting the 2.5-inch HDD / SSD module
Ê Insert the HDD / SSD module into a drive bay and carefully push back as far
as it will go.
Ê Close the locking lever to lock the hard disk drive in place.
7.2.5.4 Concluding steps
Ê "Installing accessible drive and HDD bay covers" on page 69
Ê "Performing a RAID array rebuild" on page 102

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
