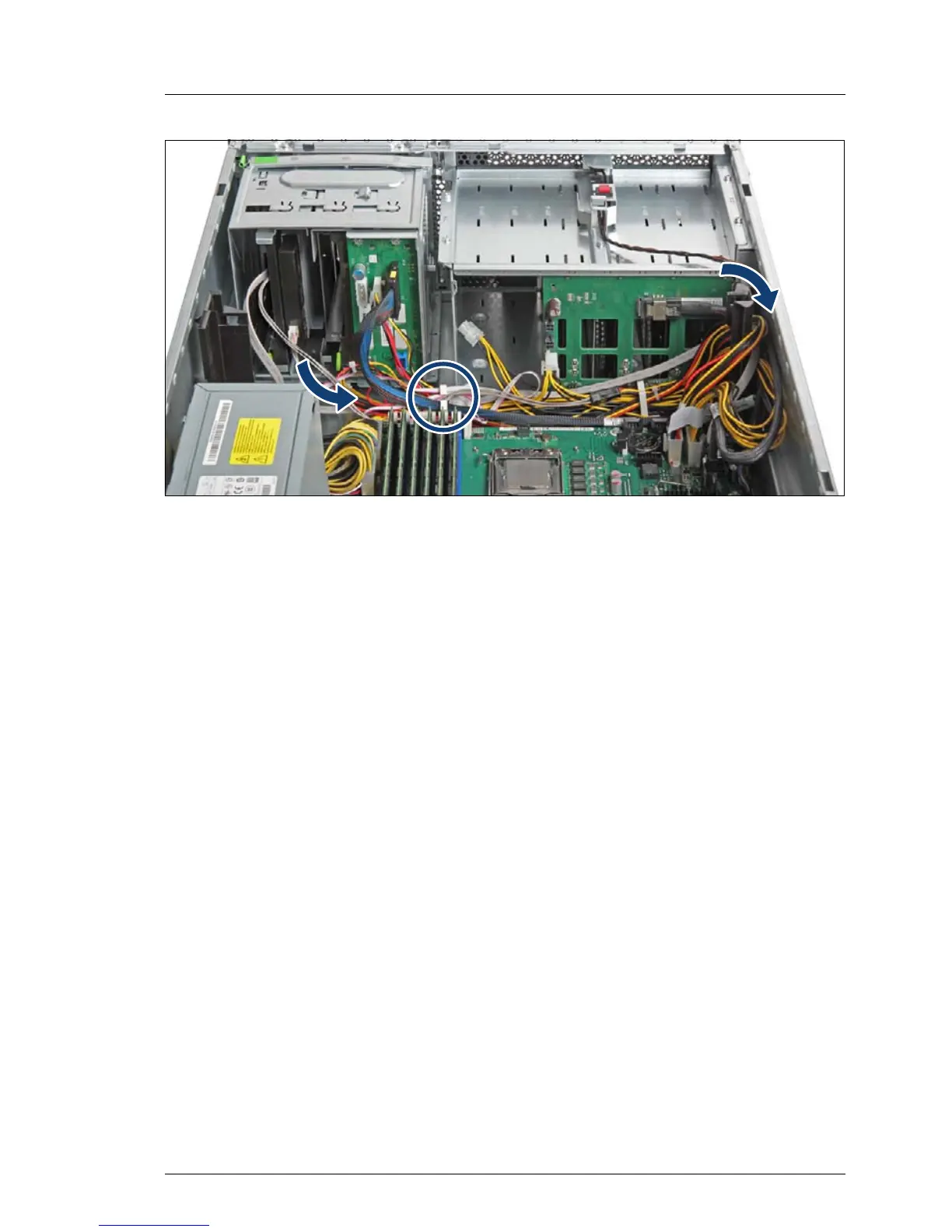

Figure 227: Routing cables
Ê Connect the LSD, SATA and power cables (see section "Cabling" on
page 393).
Ê Run the SATA cable along the drive bays and through the cable clamp on
the server floor as shown.
Ê Run the SATA cable through the cable guide.
12.5.1.6 Concluding steps
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
