Accessible drives and LSD

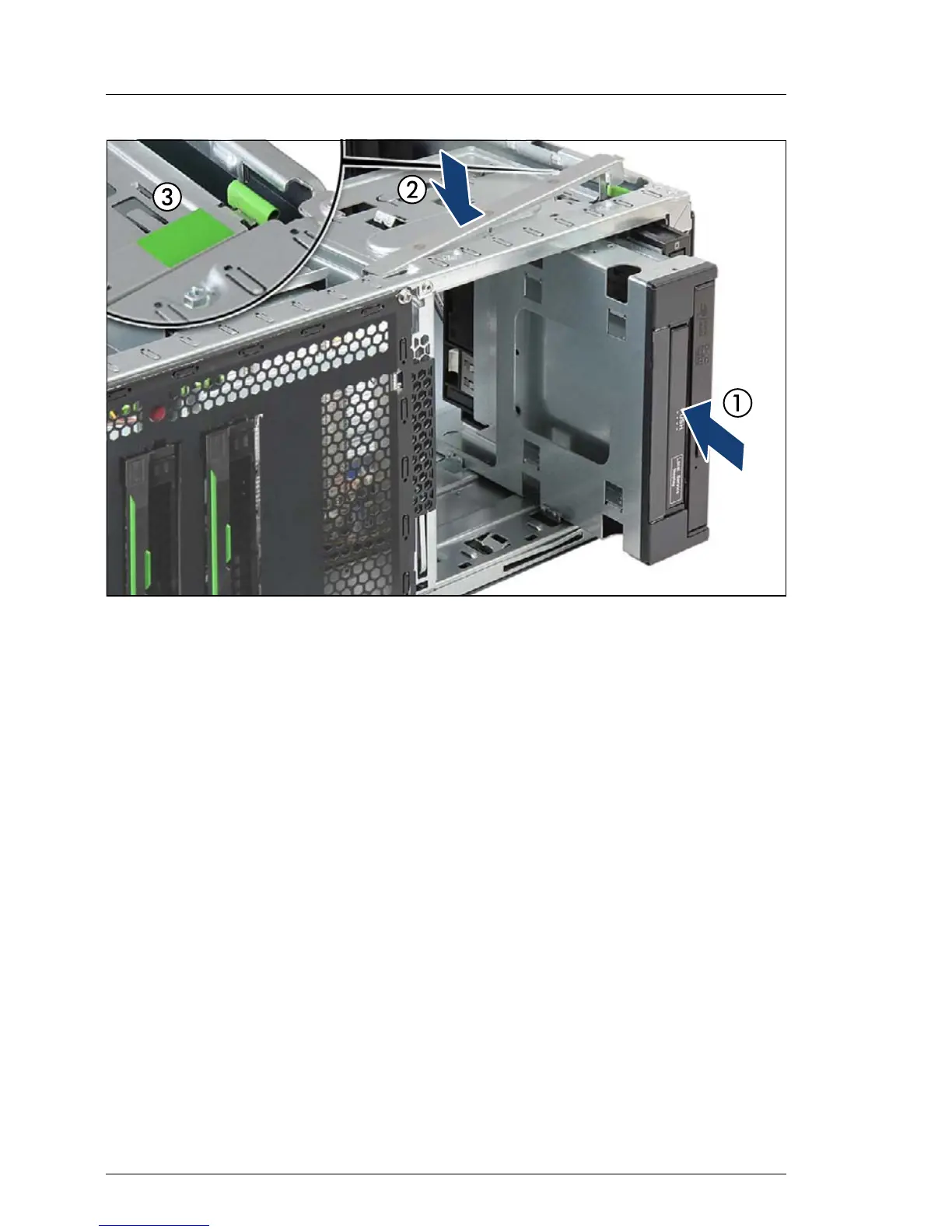

Figure 226: Inserting the Multibay box
Ê Insert the Multibay box into installation bay 1 and carefully push in until the
front screw hole on the front panel frame lines up with the centering pin on
the locking bar (1).
Ê Close the locking bar (2) until it locks in place (3).
