TX2540 M1 Upgrade and Maintenance Manual 257
Expansion cards and backup units
9.5.5.2 Removing the FBU

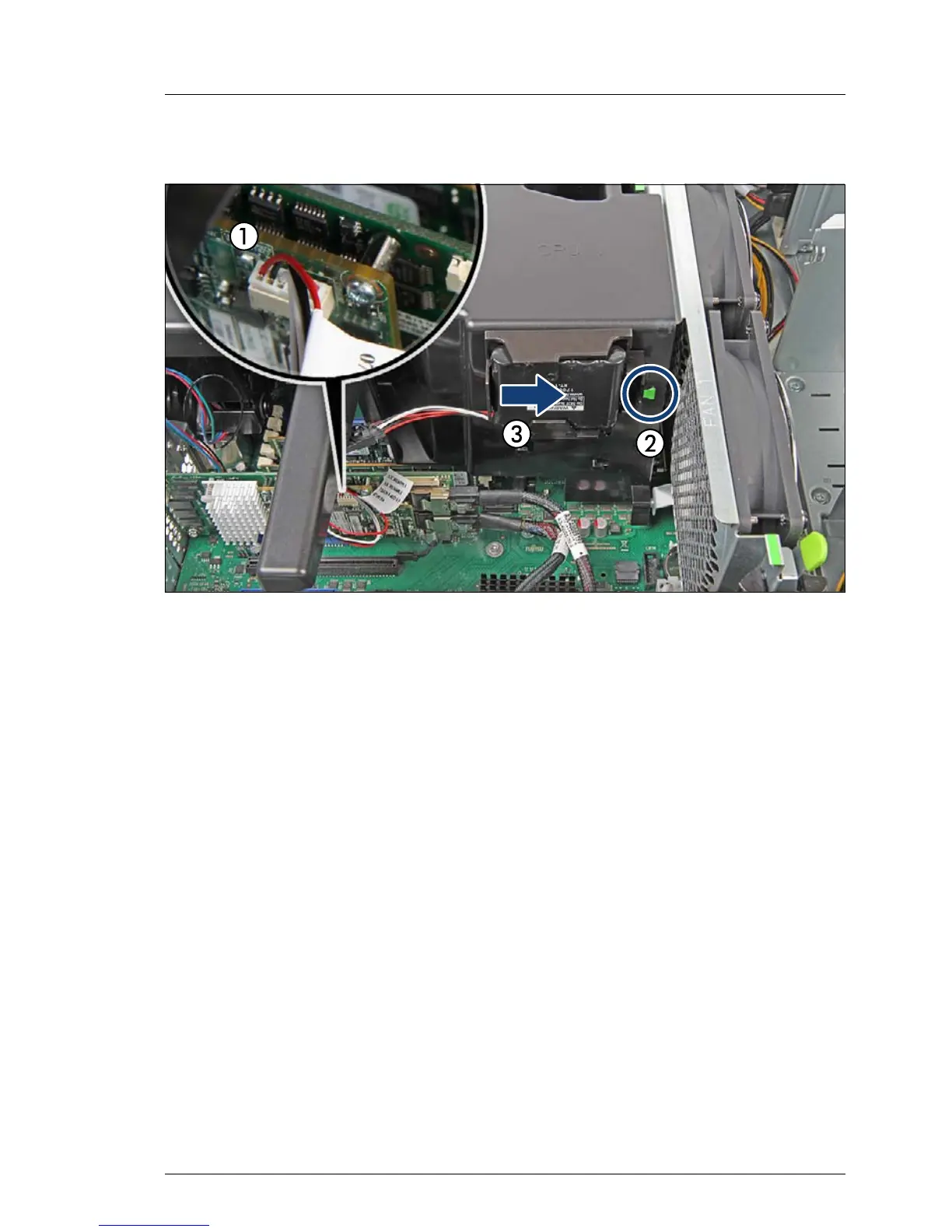

Figure 180: Removing the FBU holder from the chassis
Ê Carefully disconnect the FBU cable from the RAID controller (1).
Ê Lift up the green locking handle on the FBU holder (2) while sliding the FBU
holder in the direction of the arrow as far as it will go (3).
I After that, the hooks on the air duct will rest in the wide ends of the
keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis.

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
