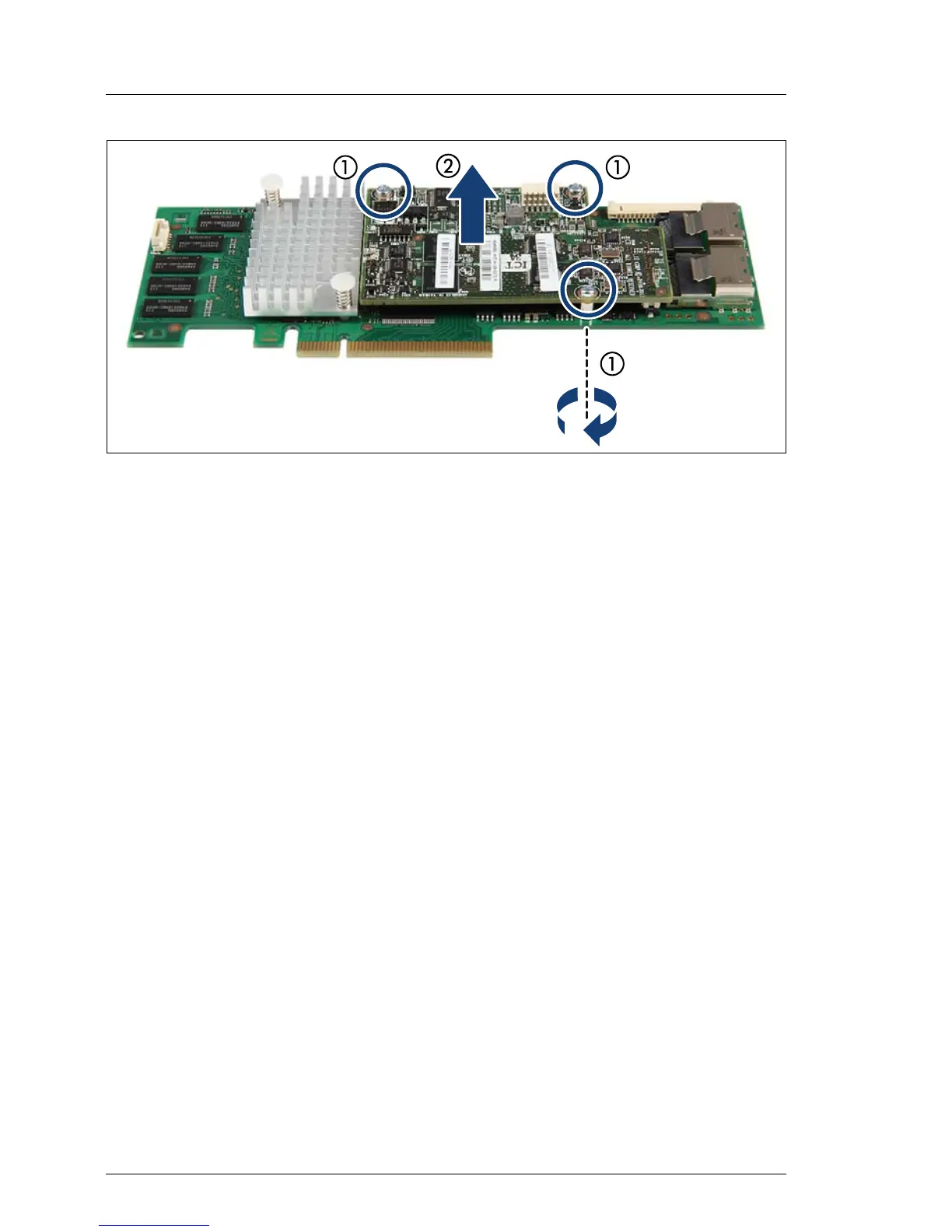

Figure 164: Removing the TFM
Ê Remove the three screws (1).
Ê Remove the TFM (2).
9.4.4.3 Installing the new TFM
Ê Install the new TFM as described in section "Installing TFM to the RAID
controller (if applicable)" on page 249.
Ê Connect the FBU cable to the TFM.
Ê Install the expansion card as described in section "Installing an expansion
card" on page 232.
9.4.4.4 Concluding steps
Ê "Reassembling" on page 62
Ê Reconnect all external cables to the replaced expansion card.
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
