Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

TX2540 M1 Upgrade and Maintenance Manual 71
Basic hardware procedures
4.5.3.4 Locking the server

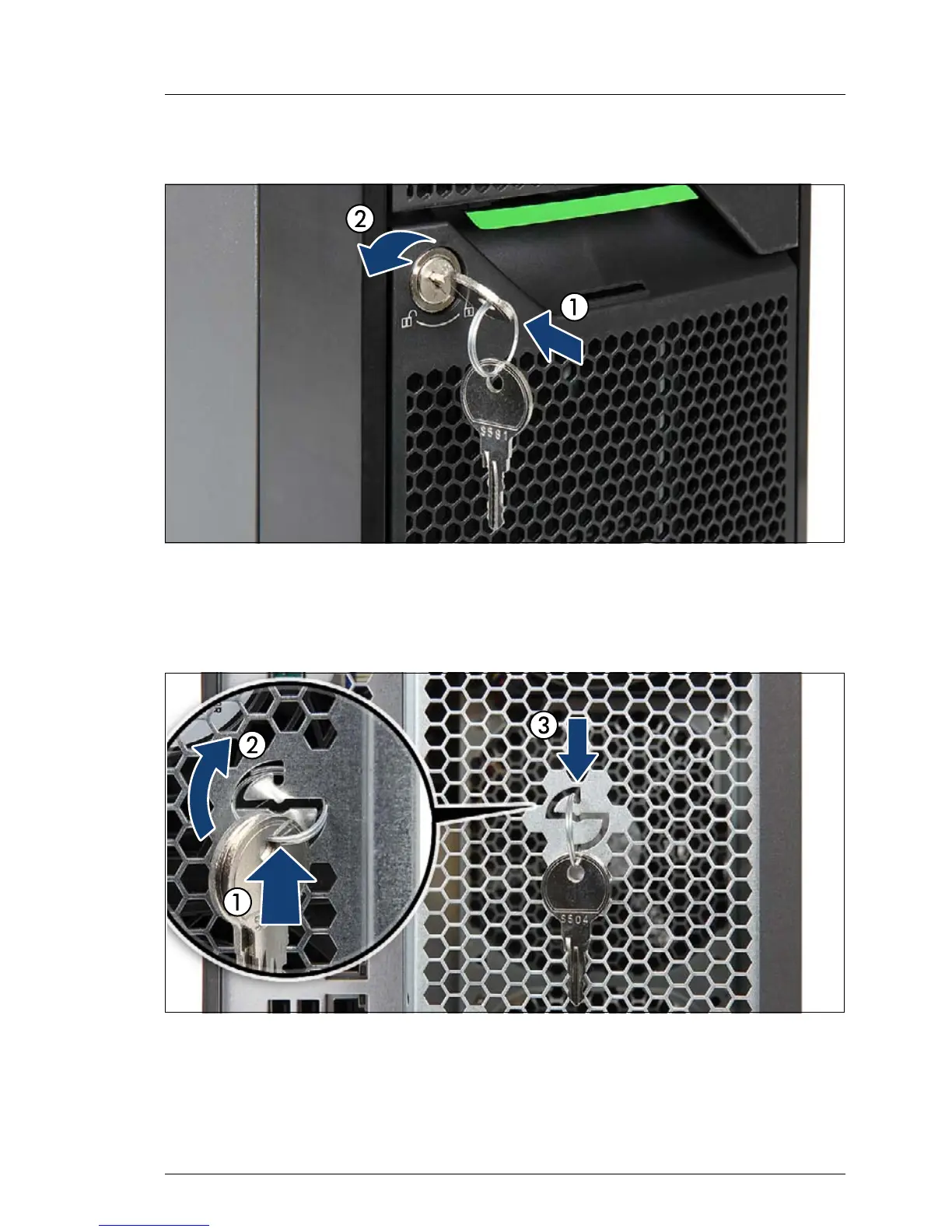

Figure 27: Locking the server
Ê Insert the key (1) and turn it counter-clockwise (2).
Ê Remove the key from the server front.
Figure 28: Storing the key ring
Ê Insert the key ring into the slot on the server rear (1).
Ê Turn the key ring clockwise by 90 degrees (2) until it latches in place as
shown (3).

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
