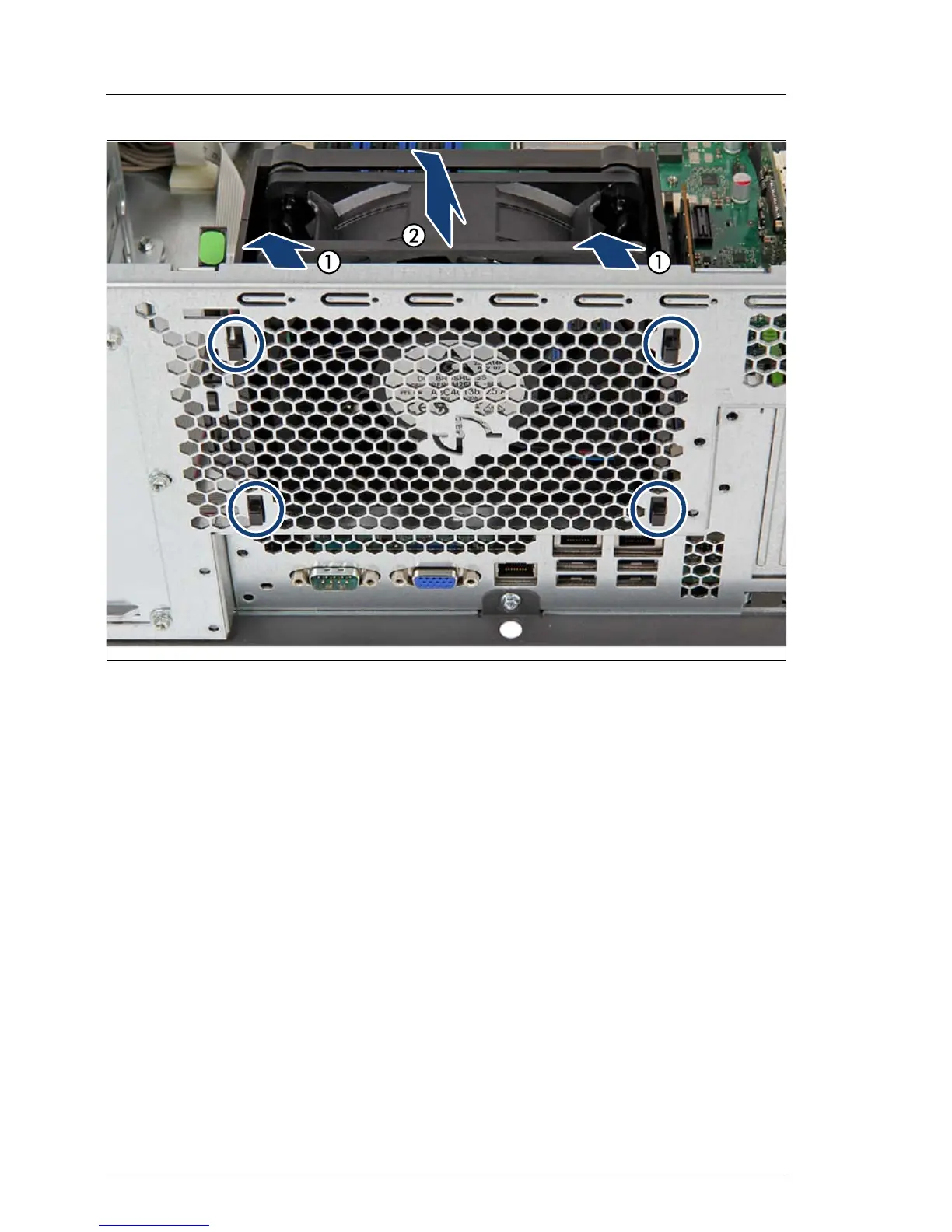

Figure 138: Removing the rear fan (B)
Ê Disengage the four hooks (see circles) from the slots on the rear (1).
Ê Remove the rear fan (2).
8.3.2.3 Concluding steps
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
