Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 329
Accessible drives and LSD
12.6.2.2 Removing the slimline ODD

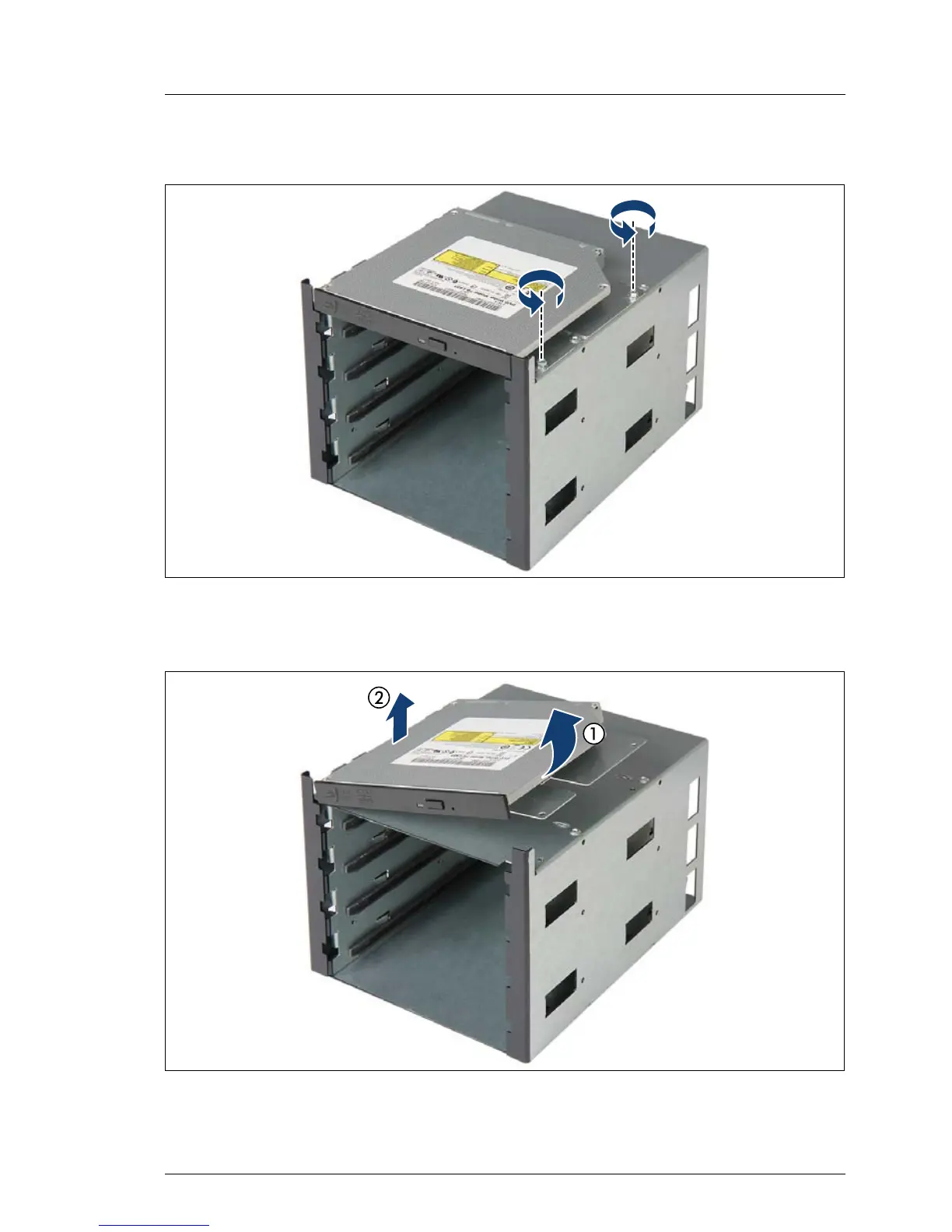

Figure 242: Removing the slimline ODD from the extension box (A)
Ê Remove two screws from the slimline ODD mounting bracket.
Figure 243: Removing the slimline ODD from the extension box (B)
Ê Fold up (1) and remove (2) the slimline ODD as shown.
