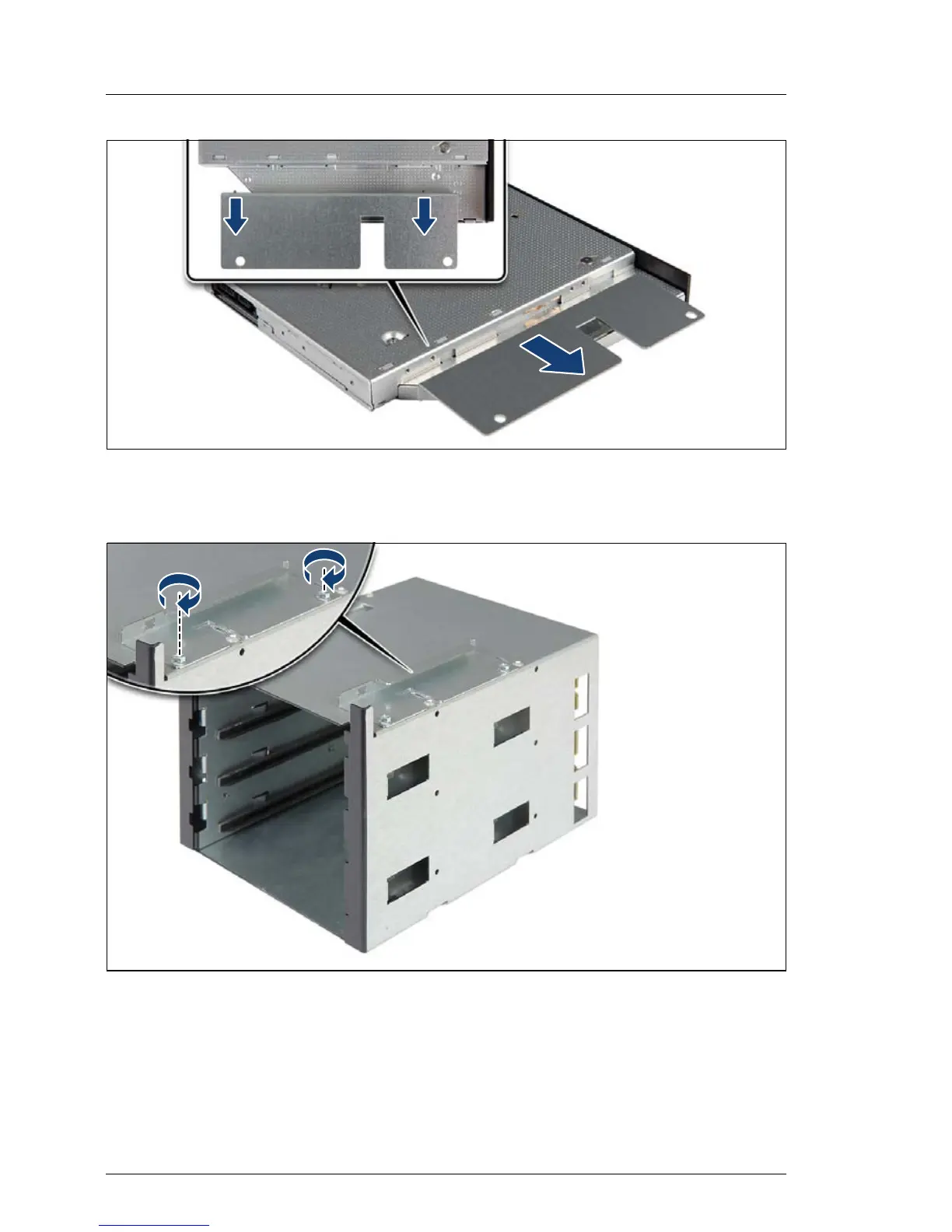

Figure 244: Removing the mounting frame from the slimline ODD
Ê Remove the slimline ODD mounting bracket from the slimline ODD.
Figure 245: Reinstalling the slimline ODD mounting frame on the HDD expansion box
Ê If the removed slimline ODD is not to be replaced by a new drive, reinstall
the slimline ODD mounting bracket on the 4x 3.5-inch HDD extension box.
Secure the slimline ODD mounting bracket on the HDD extension box with
two screws.
