Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 323
Accessible drives and LSD
I The front cover only needs to be removed in order to remove or install
accessible drive dummy covers. If the HDD extension box is already
installed in the server and will be removed in order to install a slimline
ODD or LSD module, the front cover can remain installed.
Ê "Removing the system fan holder" on page 74
Ê "Removing an HDD extension box" on page 190 (if applicable)
12.6.1.2 Installing the slimline ODD

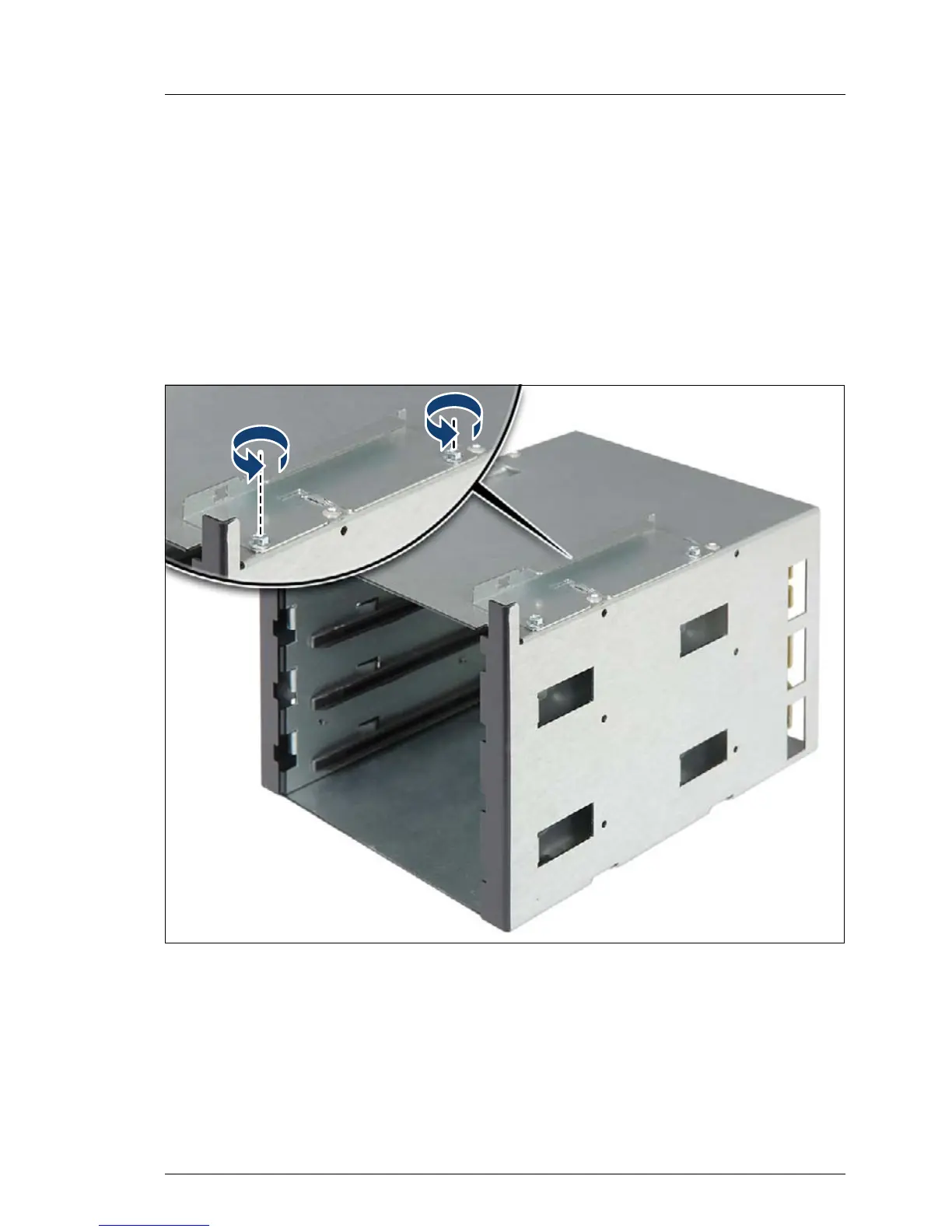

Figure 235: Removing the slimline ODD mounting bracket
Ê Remove two screws from the slimline ODD mounting bracket.
Ê Remove the slimline ODD mounting bracket.
