Hard disk drives / solid state drives
7.2.9.4 Installing the 16x 2.5-inch HDD front panel

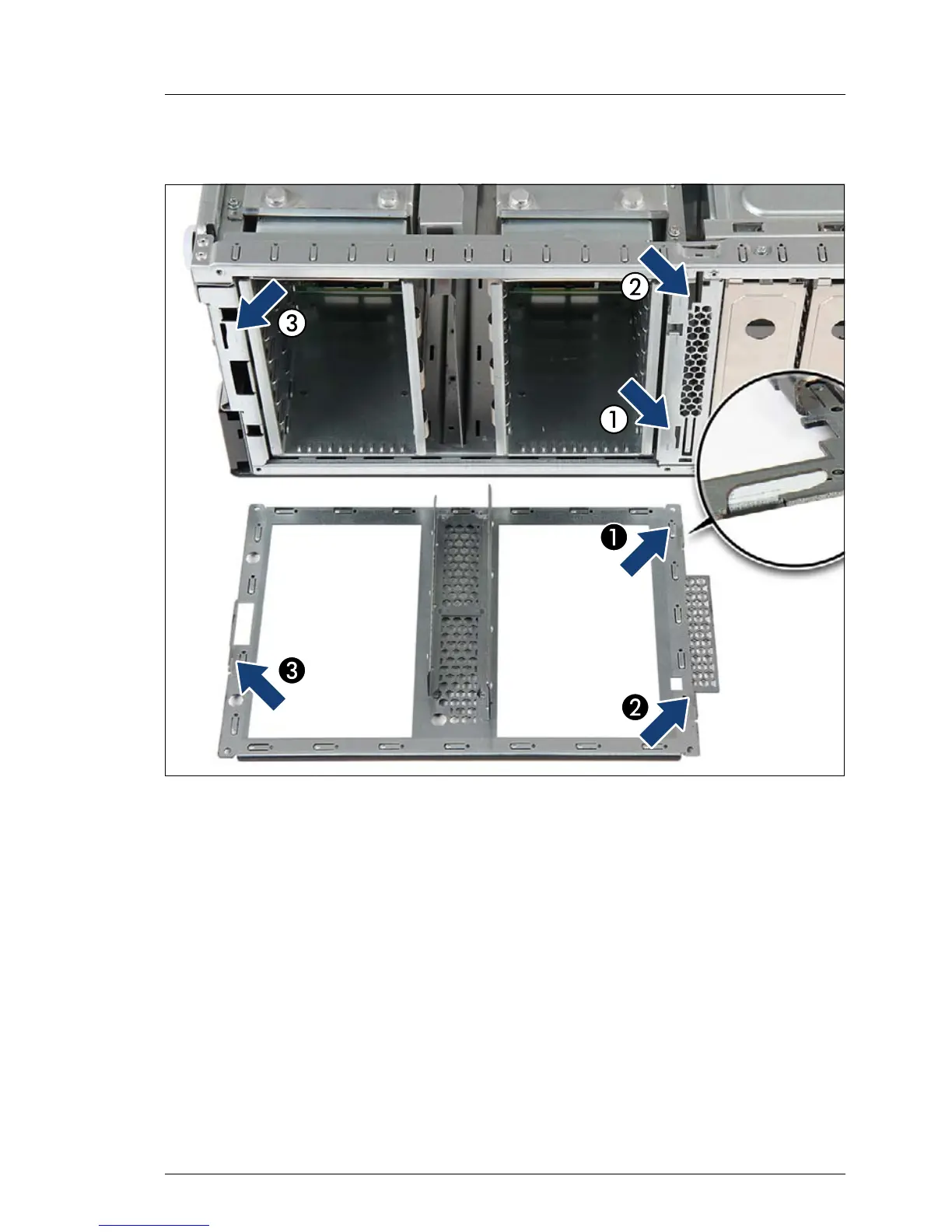

Figure 85: Installing the 16x 2.5-inch HDD front panel
Ê Locate the three hooks on the HDD front panel (see close-up and black
numbers 1-3).
Ê Locate the corresponding installation slots on the server front (see white
numbers 1-3).
Ê Fit the three hooks on the HDD front panel into the slots in the server front.
