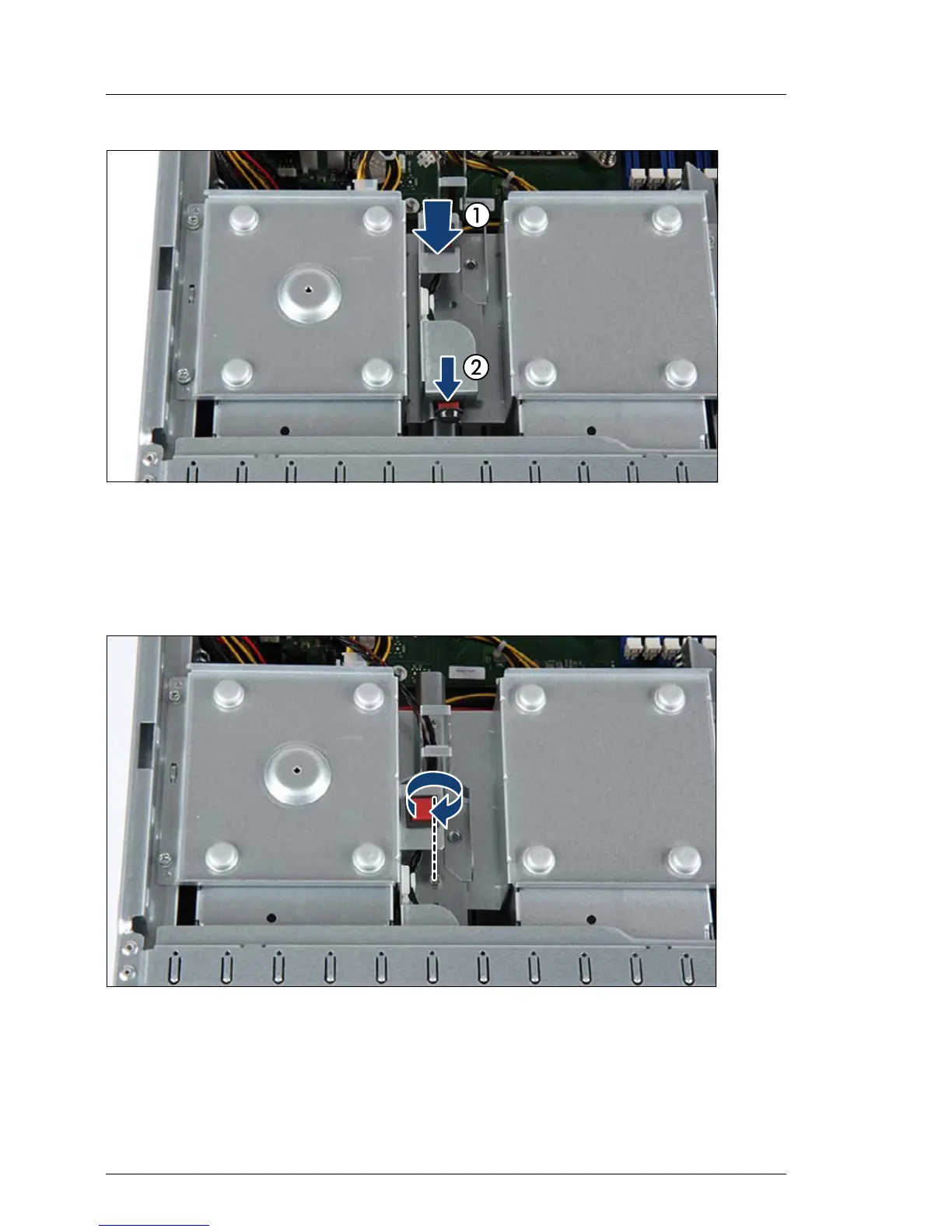

Figure 83: Installing the intrusion switch holder (A)
Ê Place the intrusion switch holder on the HDD bay top cover as shown (1).
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
Figure 84: Installing the intrusion switch holder (B)
Ê Secure the intrusion switch holder on the HDD bay top cover with one screw.
Ê Connect SAS and power cables to the 2.5-inch SAS backplanes as
described in section "Cabling plans" on page 395.
