Hard disk drives / solid state drives

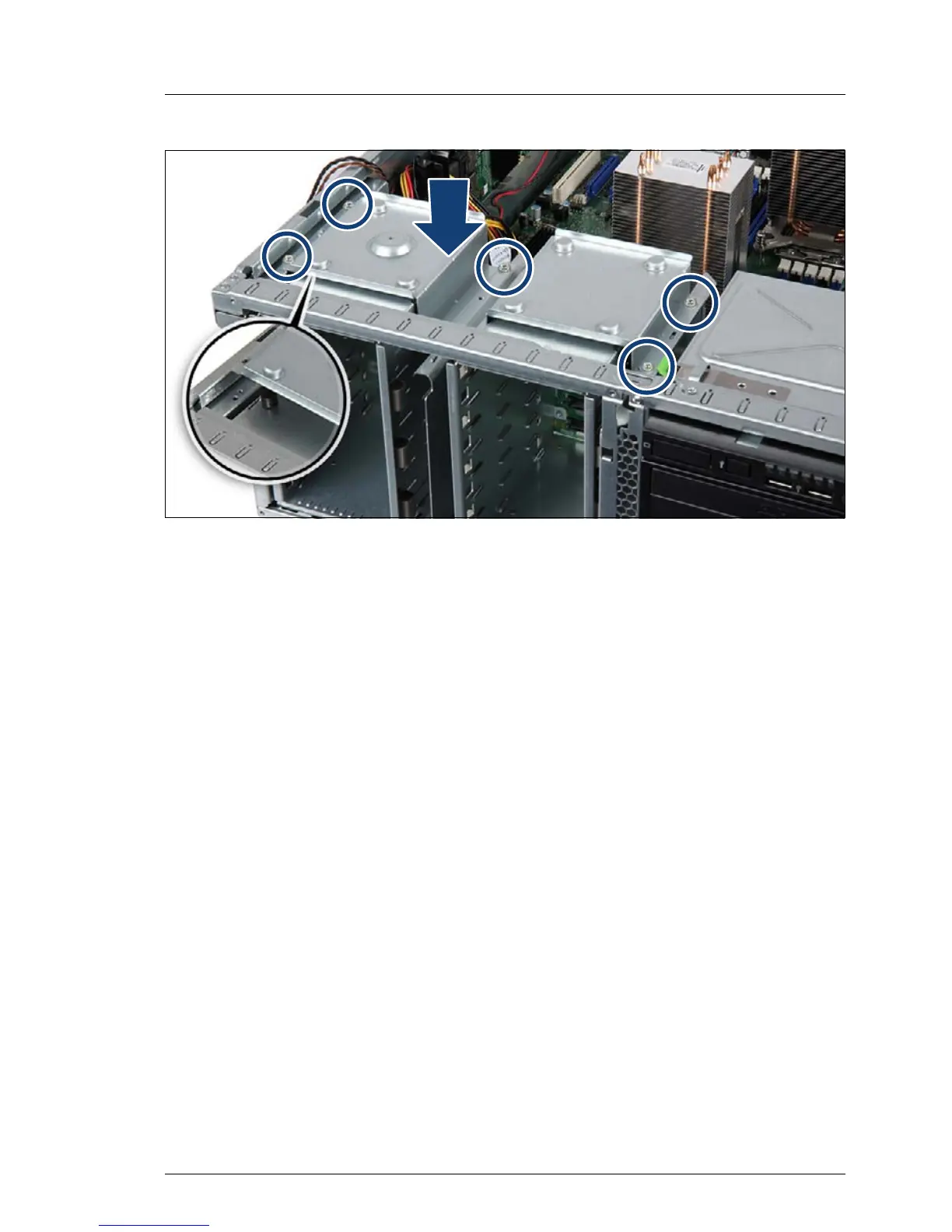

Figure 82: Mounting the 2.5-inch HDD bay top cover
Ê Lower the 2.5-inch HDD bay top cover onto the HDD installation bays.
Ê Ensure that the four rubber bolts on top of the cage properly engage with the
corresponding dents in the HDD bay top cover (see close-up).
Ê Secure the HDD bay top cover to the chassis with five screws (see circles).
