Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 141
Hard disk drives / solid state drives
7.2.3 16x 2.5-inch HDD / SSD configuration
Mounting order

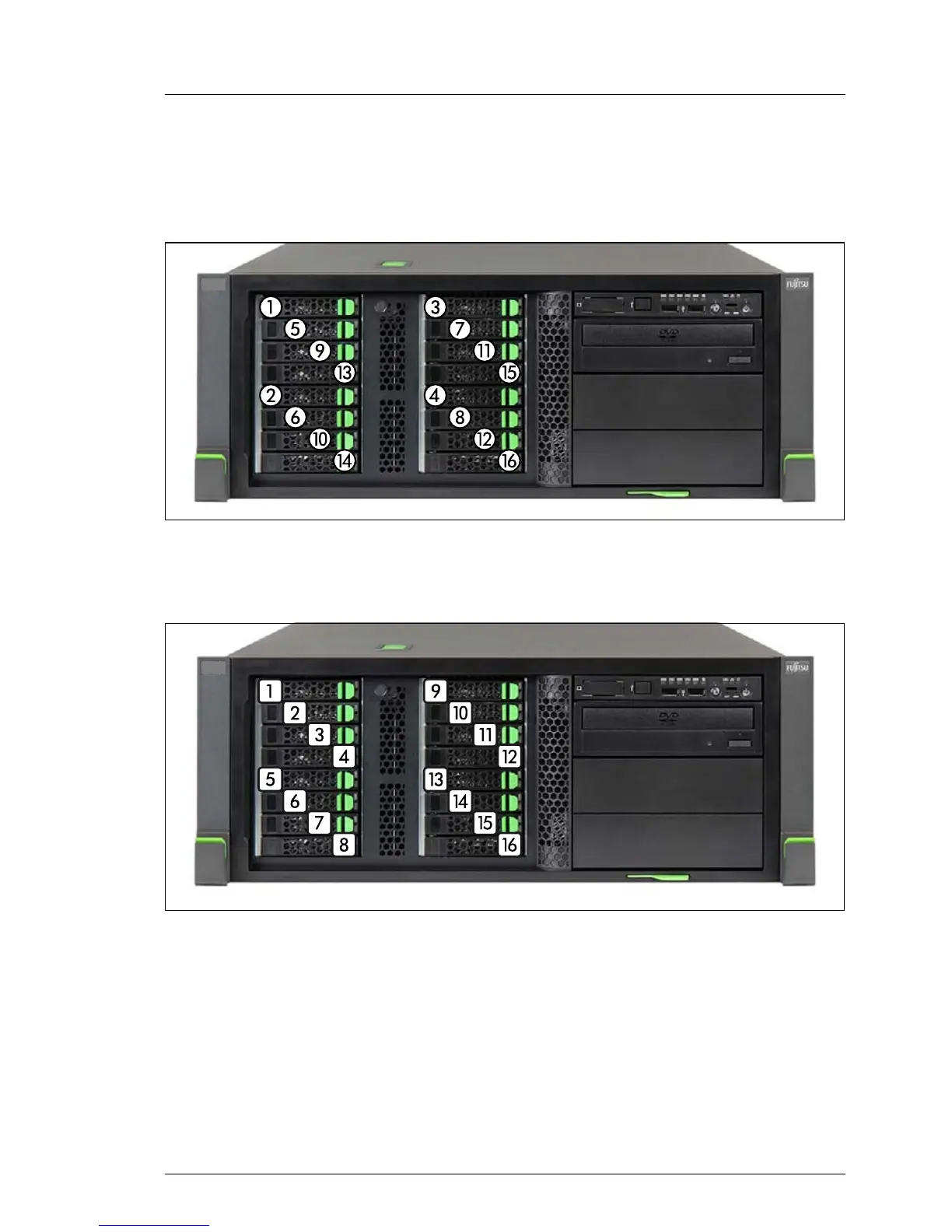

Figure 64: Mounting order with up to 16 2.5-inch HDDs (4 SAS backplanes)
HDD / SSD naming scheme
Figure 65: Naming scheme with 16 2.5-inch HDDs (4 SAS backplanes)
