Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

TX2540 M1 Upgrade and Maintenance Manual 143
Hard disk drives / solid state drives
7.2.4 24x 2.5-inch HDD / SSD configuration
I This configuration requires the 8x 2.5-inch HDD extension box (see
section "HDD extension boxes" on page 181.
Mounting order

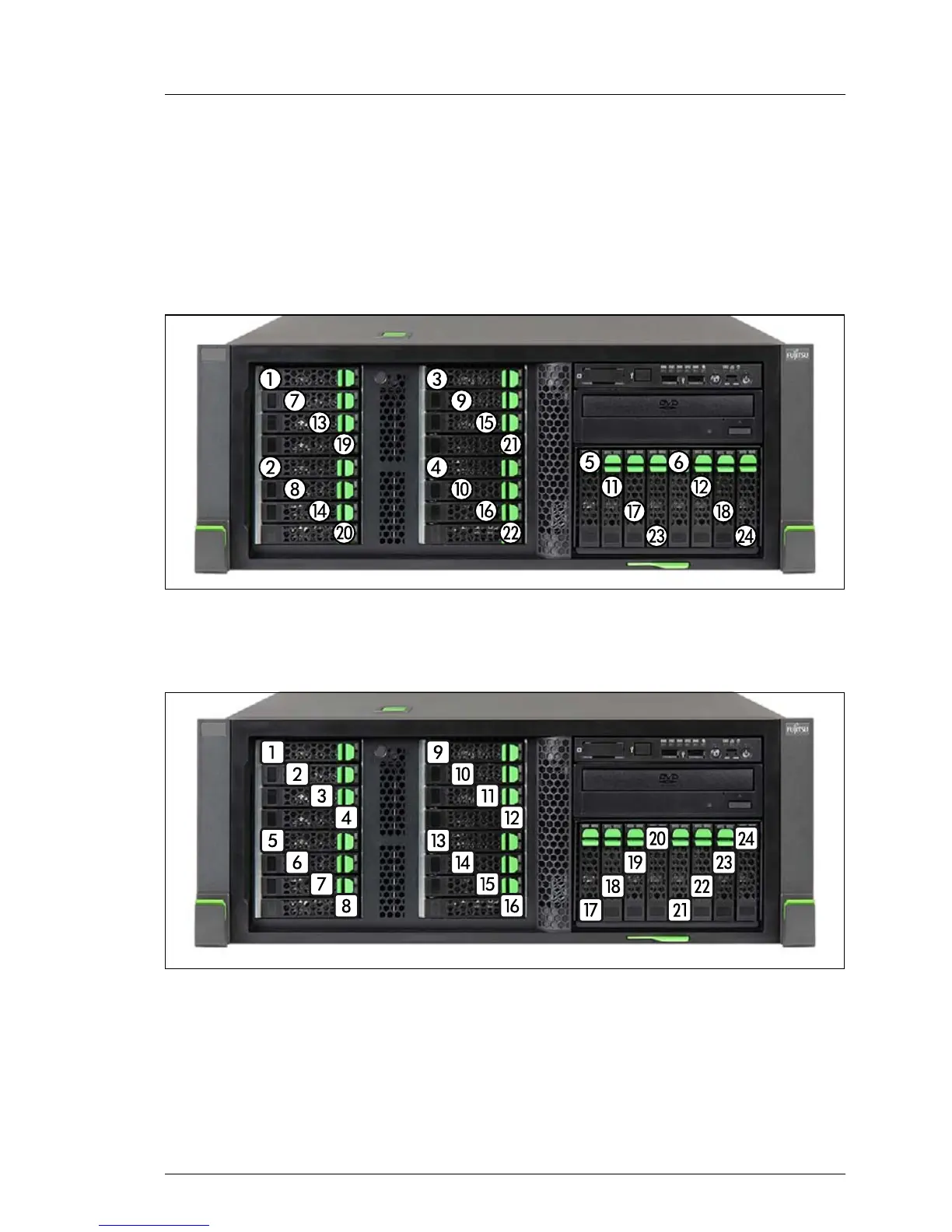

Figure 66: Mounting order with up to 24 2.5-inch HDDs (6 SAS backplanes)
HDD / SSD naming scheme
Figure 67: Naming scheme with 24 2.5-inch HDDs (6 SAS backplanes)
PRIMERGY
TX2540 M1
PRIMERGY
TX2540 M1
