Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

154 Upgrade and Maintenance Manual TX2540 M1
Hard disk drives / solid state drives
7.2.8.2 Removing the defective SAS backplane

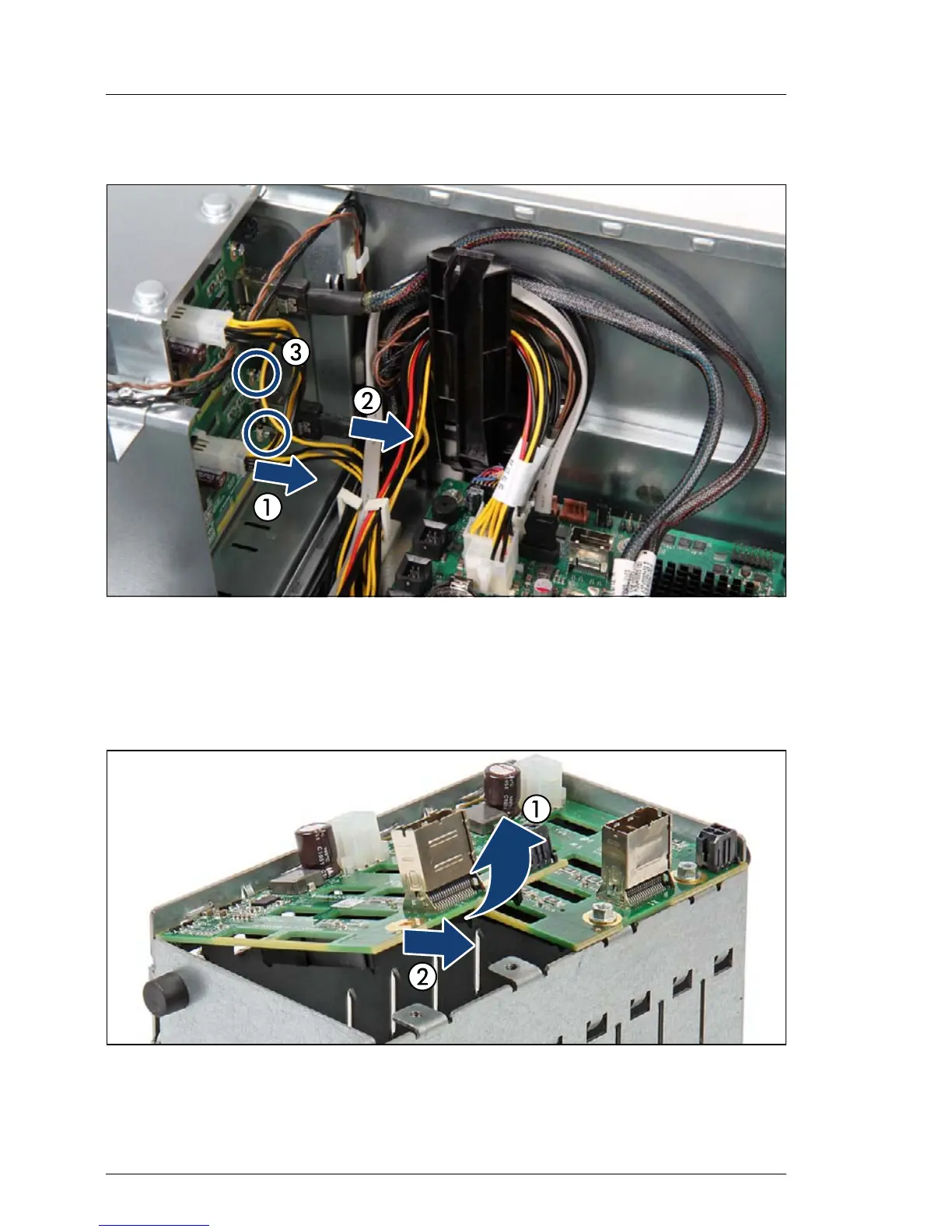

Figure 73: Disconnecting cables
Ê Disconnect the power cable (1) and the SAS cable (2) from the SAS
backplane.
Ê Remove the two screws (3, see circles).
Figure 74: Removing the 2.5-inch HDD SAS backplane
Ê Lift up the SAS backplane (1) and at a slight angle, remove it from the guides
on the HDD cage (2).

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
