2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Maintenance
procedures
yes
Maintenance procedures including
preliminary and concluding software tasks
Transport no
Returning the server to its installation site
(where required) depends on local
customer conditions.
Assembly,
rack installation
yes
Reassembling the server, installing the
server in the rack (if applicable)
Starting up no
Booting time depends on hardware and
software configuration and may vary
significantly.
Screw driver /
Bit insert
Screw Usage Type
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
Backup
drives,
optical disk
drives,
chassis
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
Slot brackets
for
controllers
M3 x 3.5 mm
(silver)
C26192-Y10-C151
Phillips
PH2 / (+) No. 2
hexagonal cross
SW5 / PZ2
System
board
M3 x 6 mm
(silver)
C26192-Y10-C68

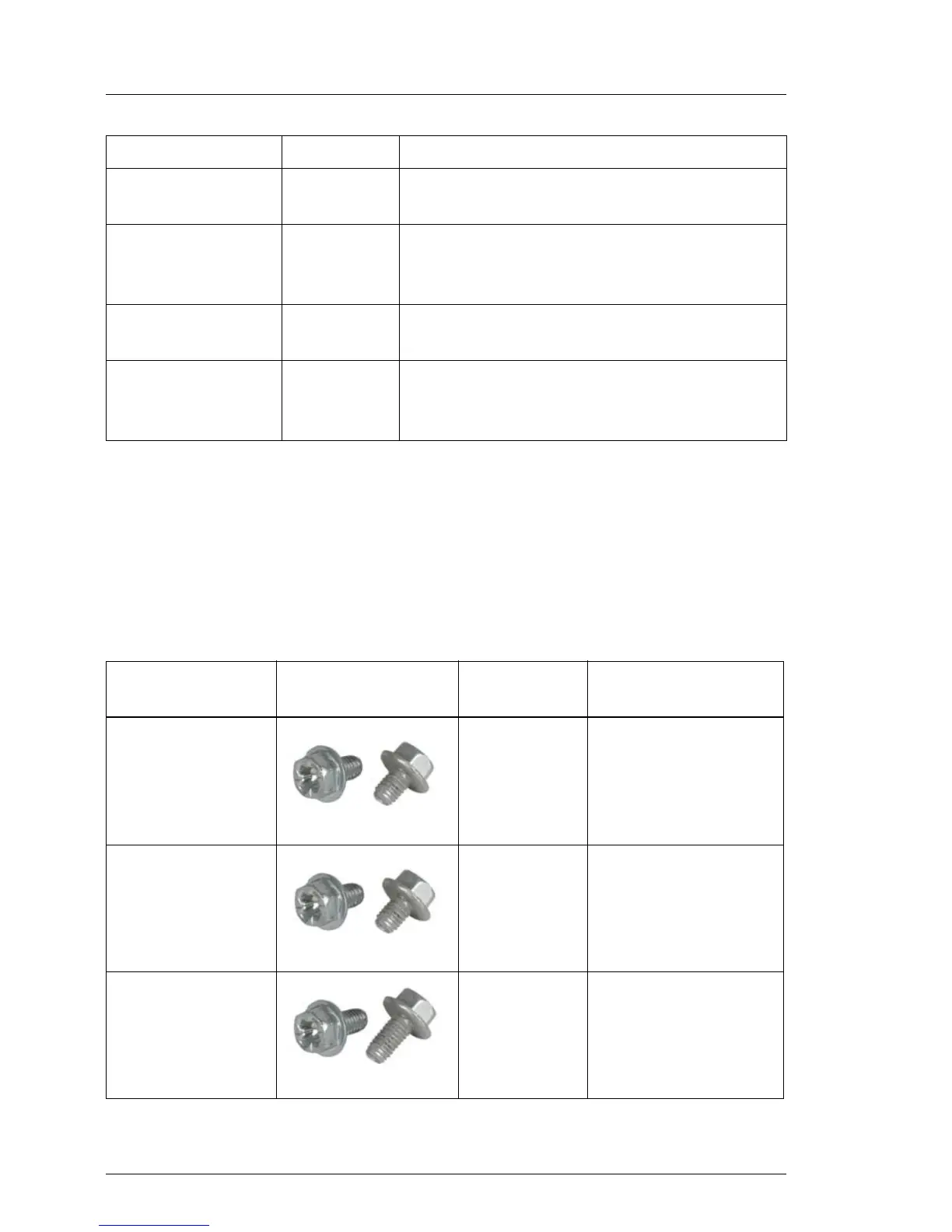

Table 2: List of required tools and used screws
