14.3.2.2 Removing the UFM

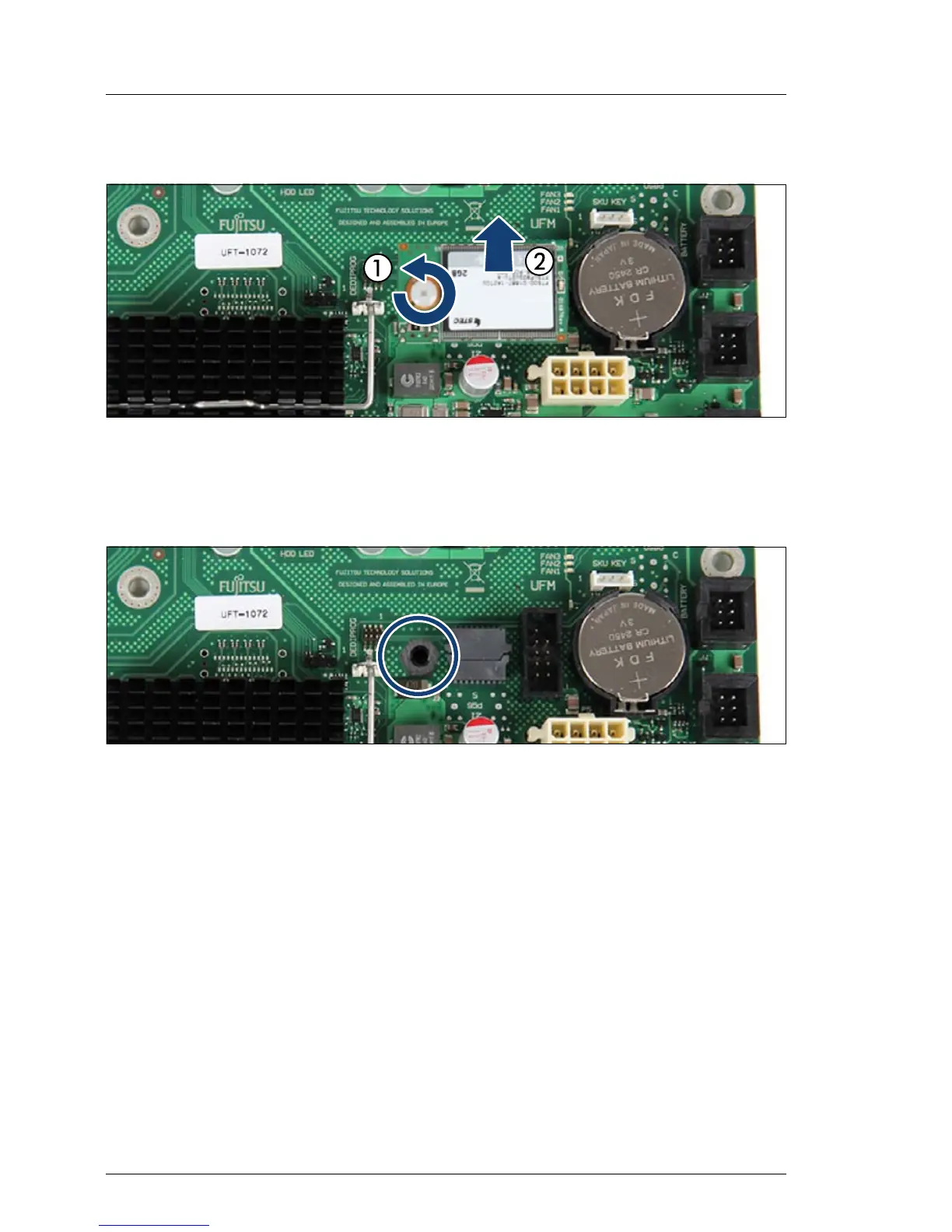

Figure 259: Removing the UFM (A)
Ê Remove the nylon screw (1).
Ê Disconnect and remove the UFM (2).
Figure 260: Removing the UFM (B)
Ê The UFM spacer remains on the system board.
14.3.2.3 Concluding steps
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê "Enabling BitLocker functionality" on page 101
