System board and components
14.4.1.2 Installing the TPM

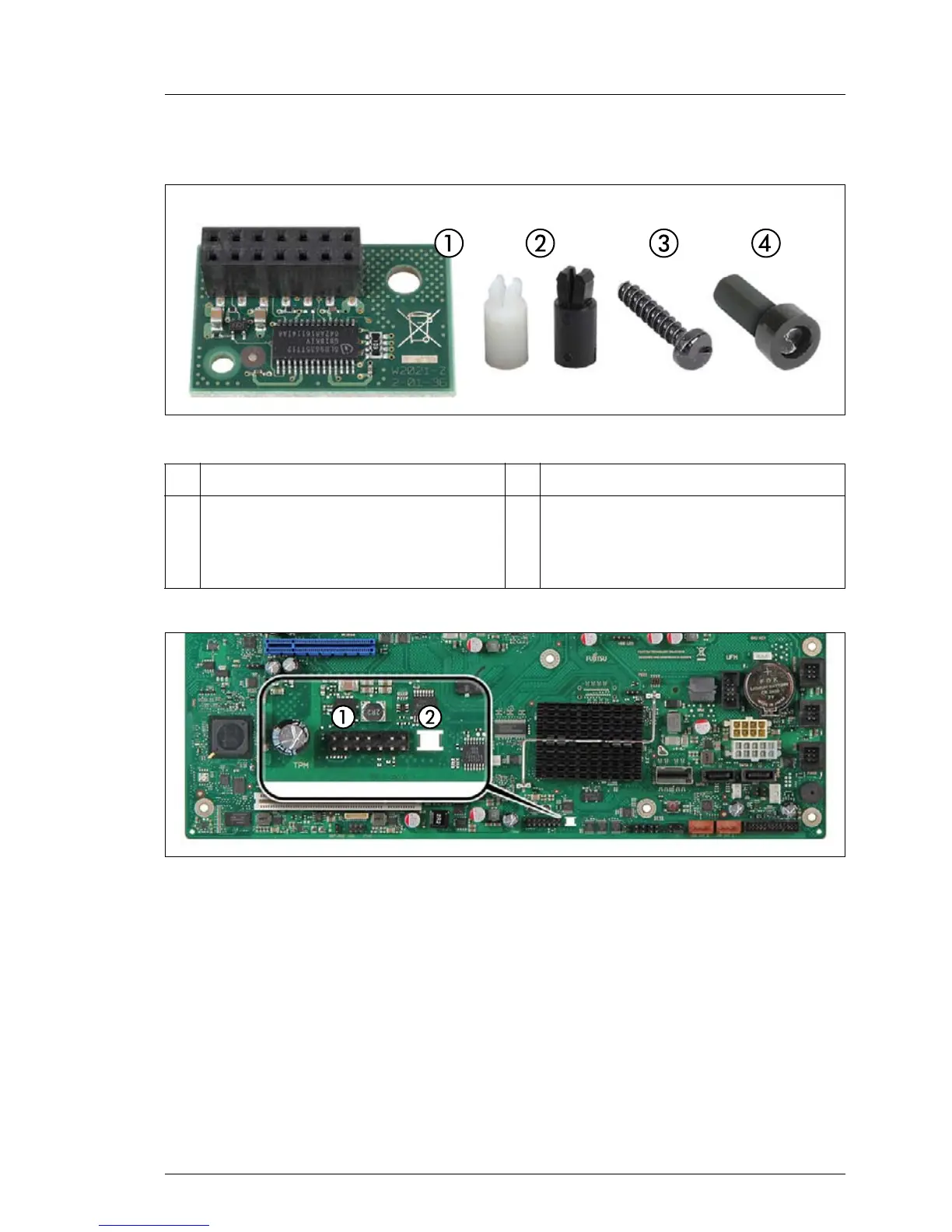

Figure 265: TPM kit
Figure 266: TPM mounting location
– 1: TPM connector
– 2: Cut-out for TPM spacer
1 TPM (Trusted Platform Module) 3 Special screw for TPM
2 TPM spacer
I The black TPM spacer is
not used in this server.
4 TPM bit insert for TPM special
screw
