Fujitsu PRIMERGY TX2540 M1

354 Upgrade and Maintenance Manual TX2540 M1
System board and components

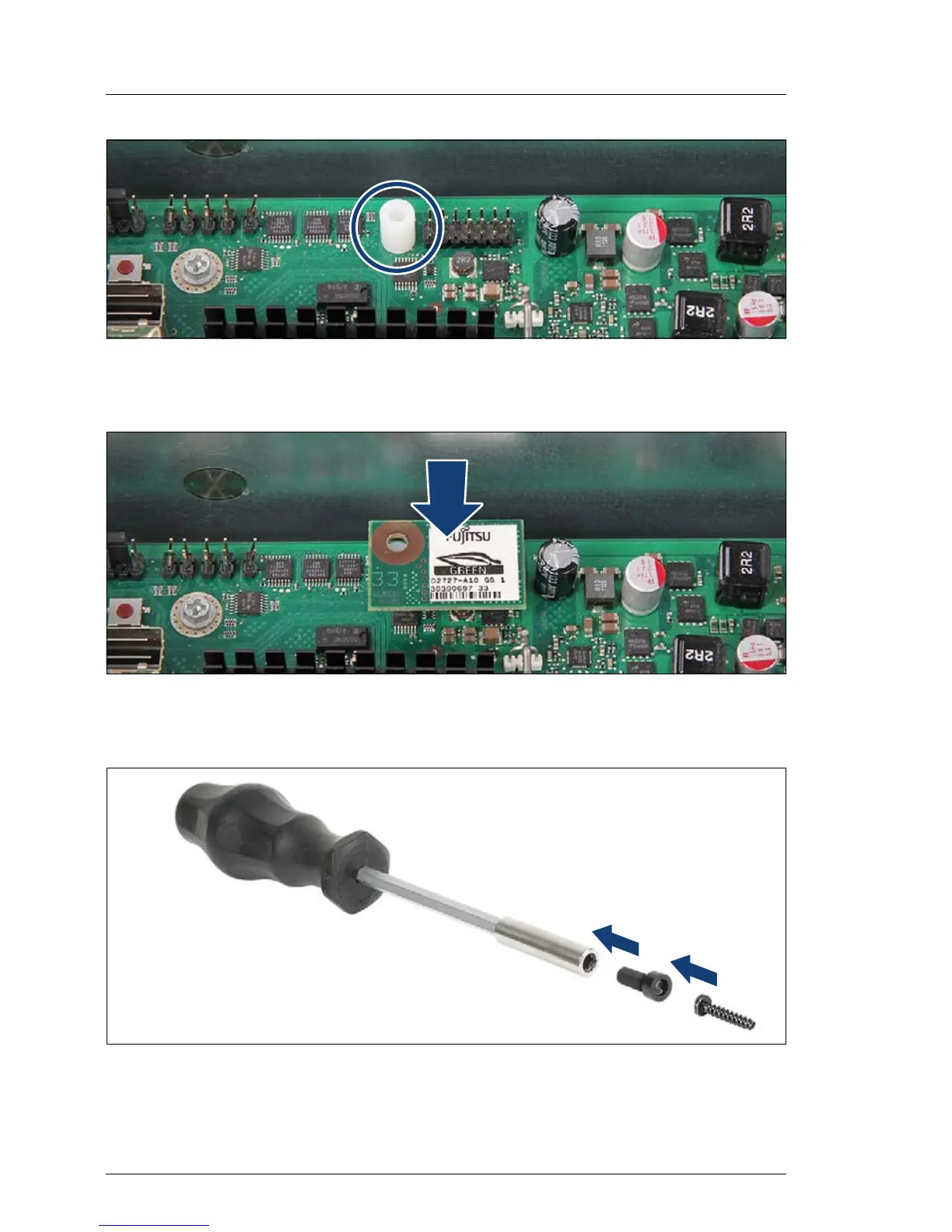

Figure 267: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
Figure 268: Installing the TPM
Ê Connect the TPM to the system board.
Figure 269: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
