12.3.2 Removing an accessible drive
Ê Remove all cables from the accessible drive see section "Cabling plans" on
page 395.
Ê Press out on the locking latch to disengage the accessible drive locking bar
(see figure 214).
Ê Fold up the accessible drive locking bar.

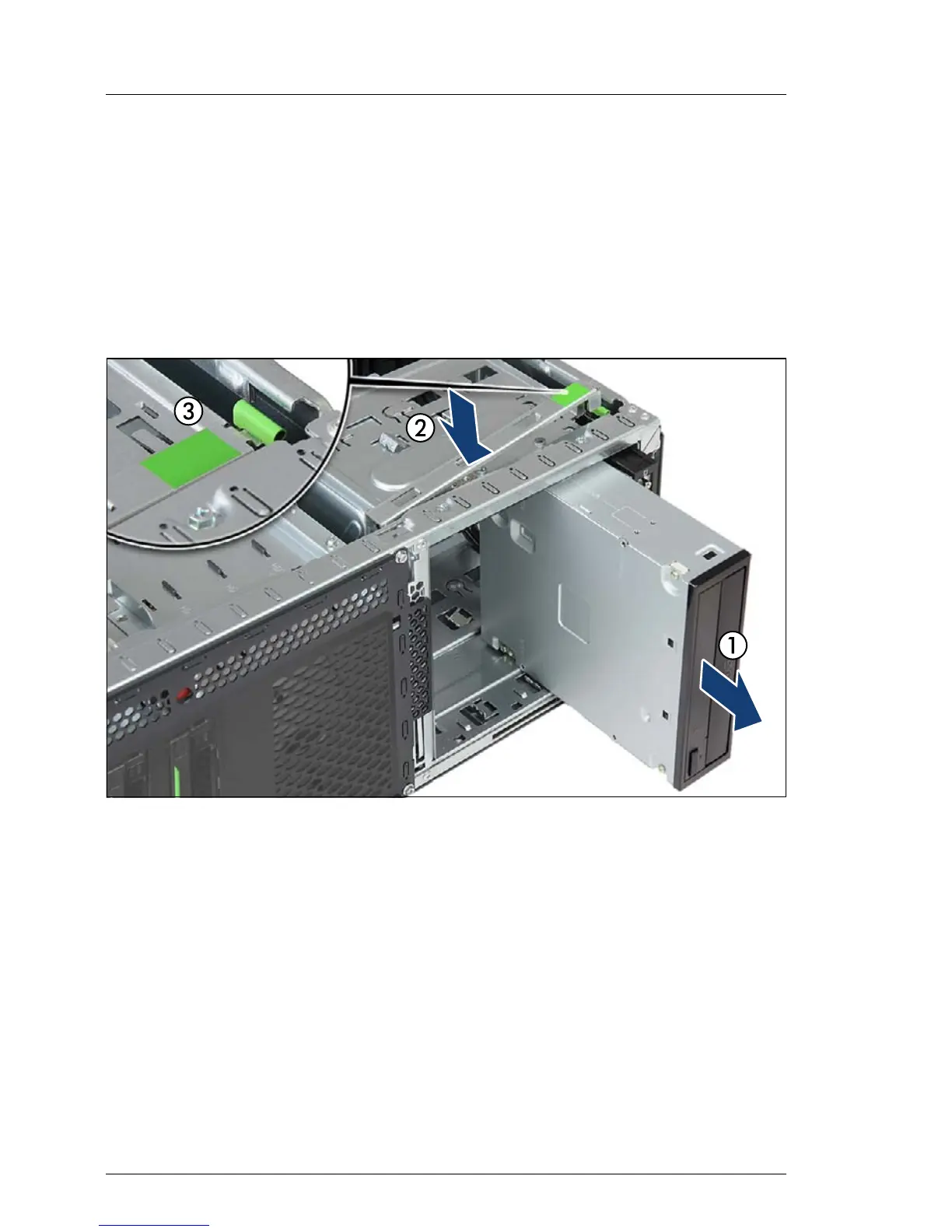

Figure 218: Removing the accessible drive
Ê Carefully pull the accessible drive out of its installation bay (1).
Ê Close the locking bar (2) until it locks in place (3).
12.3.3 Installing accessible drive dummy covers
Ê If applicable, install the accessible dummy covers for the desired accessible
drive bay as described in section "Installing accessible drive dummy covers"
on page 192.
