Accessible drives and LSD

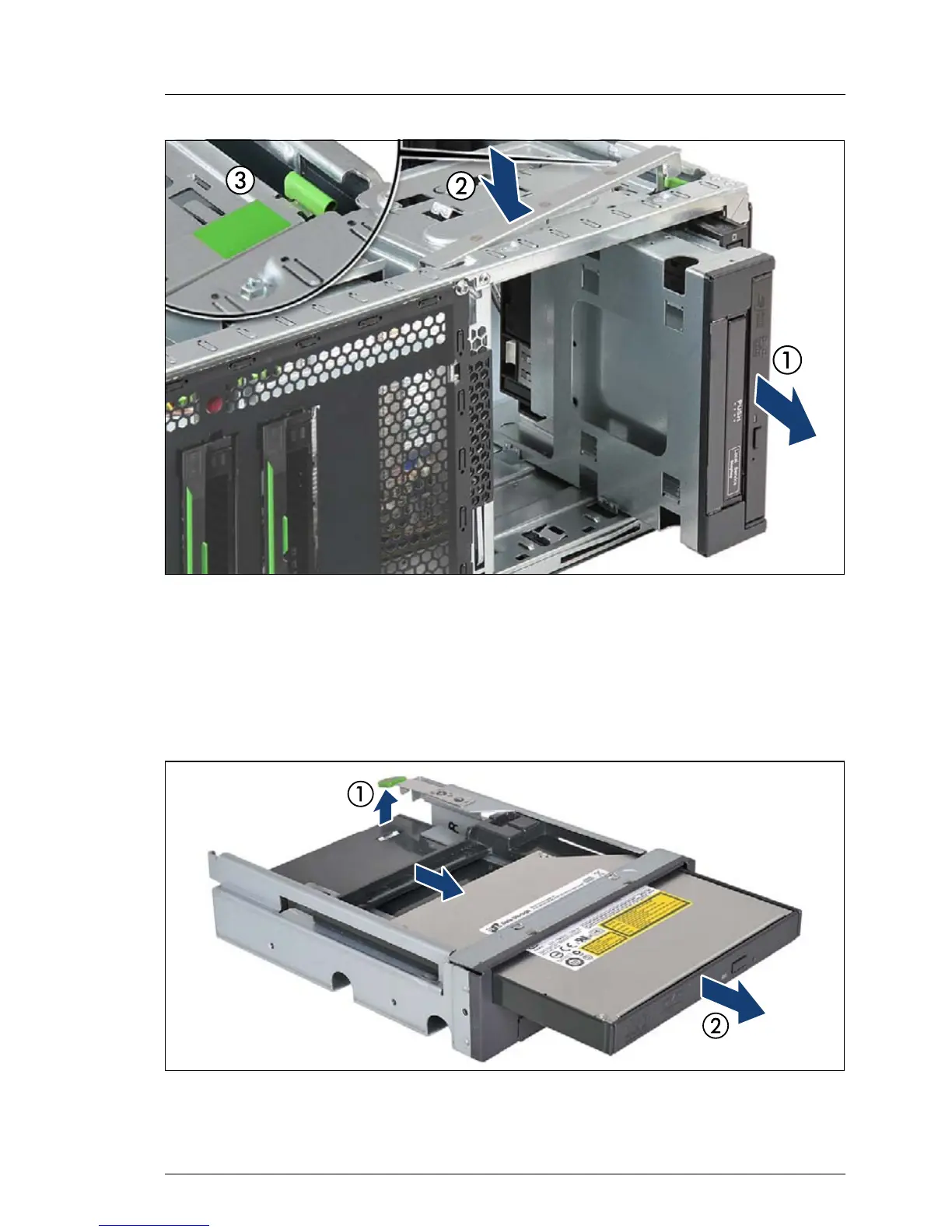

Figure 228: Removing the Multibay box
Ê Carefully pull the Multibay box out of its installation bay (1).
Ê Close the locking bar (2) until it locks in place (3).
12.5.2.3 Removing the slimline ODD
Figure 229: Removing the slimline ODD from the Multibay box
Ê Press up on the locking tab to disengage the slimline ODD module (1).
