Fujitsu PRIMERGY TX2540 M1 Upgrade And Maintenance Manual

372 Upgrade and Maintenance Manual TX2540 M1
System board and components
14.6.3 Installing the new system board

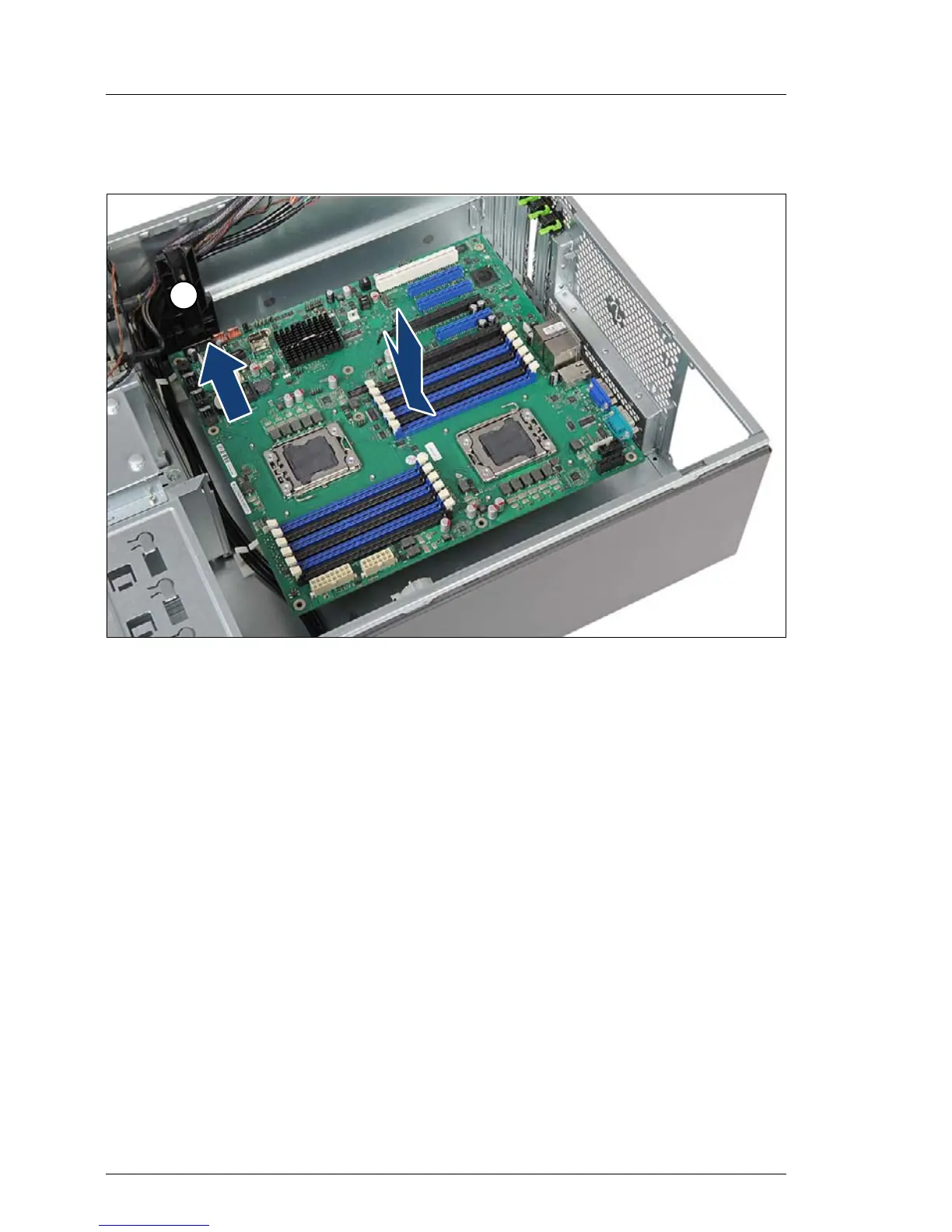

Figure 280: Installing the system board (A)
Ê Hold the system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis. Make sure that
the system board is shifted under the cable guide (G) before you lower it
down.
G

Fujitsu PRIMERGY TX2540 M1 Specifications

General

Processor socket	-
Intel Xeon series	E5-2400
Built-in processor	No
Motherboard chipset	Intel® C602
Number of processors supported	2
Number of DIMM slots	12
Supported memory types	DDR3-SDRAM
Maximum internal memory	192 GB
RAID levels	0, 1, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	3.5 \
Number of storage drives supported	4
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
LAN controller	Intel I210
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	6
Chassis type	Tower
Product color	Black
