Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 371
System board and components

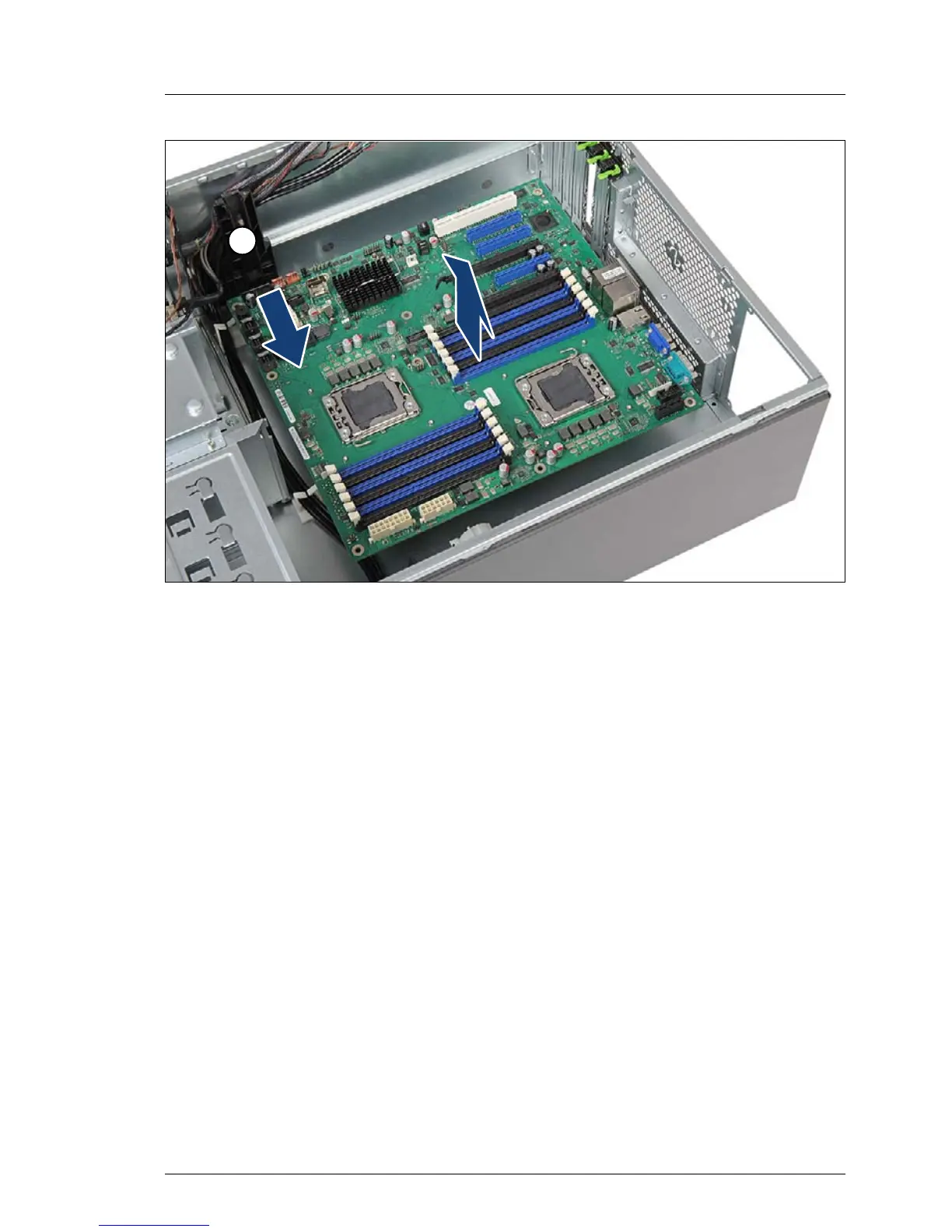

Figure 279: Removing the system board (C)
Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis. Make sure that the system
board is shifted from the cable guide (G) before you lift it out.
Ê If applicable, remove the TPM as described in section "Removing the TPM"
on page 357.
G
