Fujitsu PRIMERGY TX2540 M1

370 Upgrade and Maintenance Manual TX2540 M1
System board and components

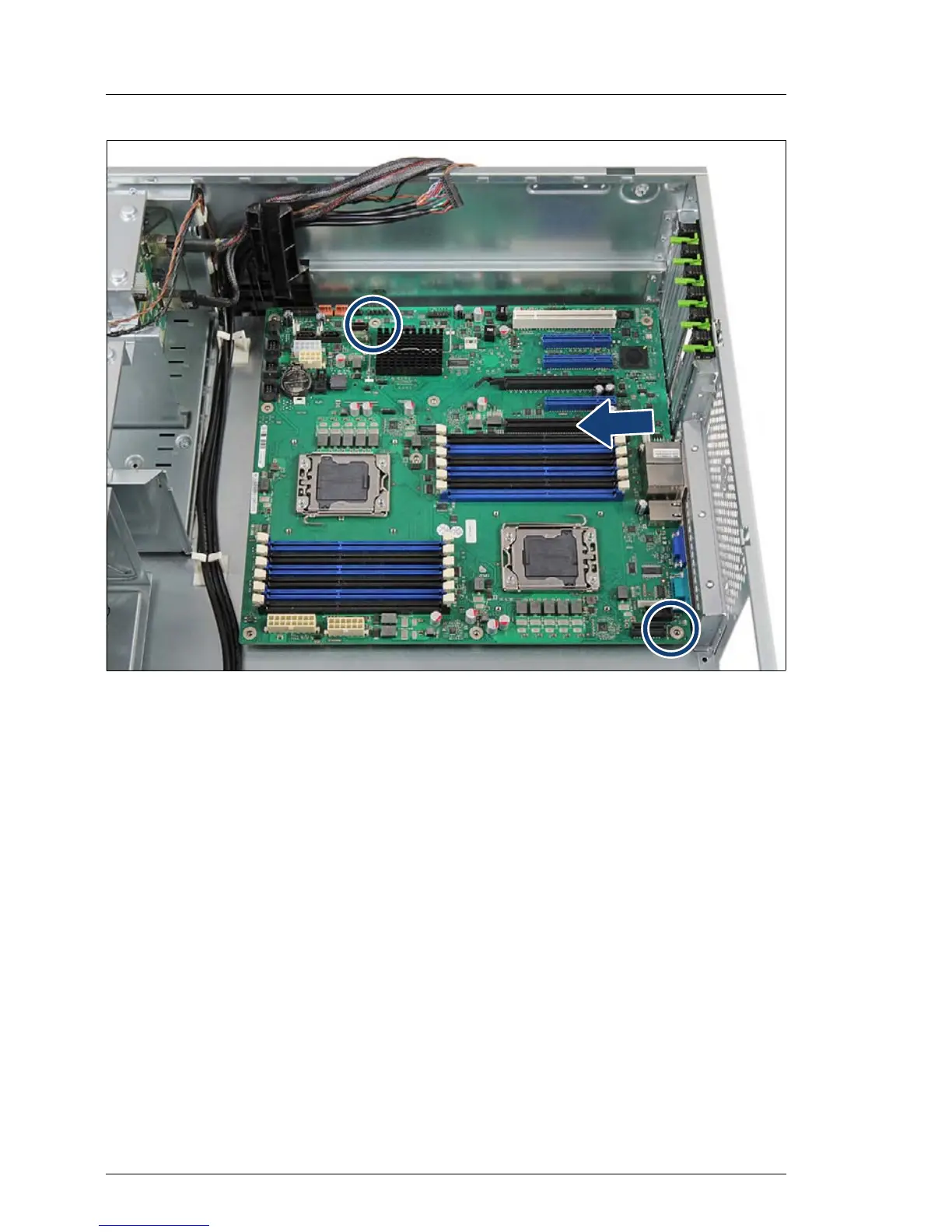

Figure 278: Removing the system board (B)
Ê Slightly lift up the system board by the memory module ejectors and a PCI
slot in order to detach it from the centering bolts (see circles).
Ê Carefully shift the system board towards the server front until the plug shells
disengage from the cut-outs in the connector panel.
