Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 369
System board and components
– UFM: refer to section "Removing the UFM" on page 347
I Remove the UFM spacer from the defective system board and
fasten it to the UFM with the UFM screw.
– Onboard SAS enabling key: refer to section "Removing the onboard SAS
enabling key" on page 364

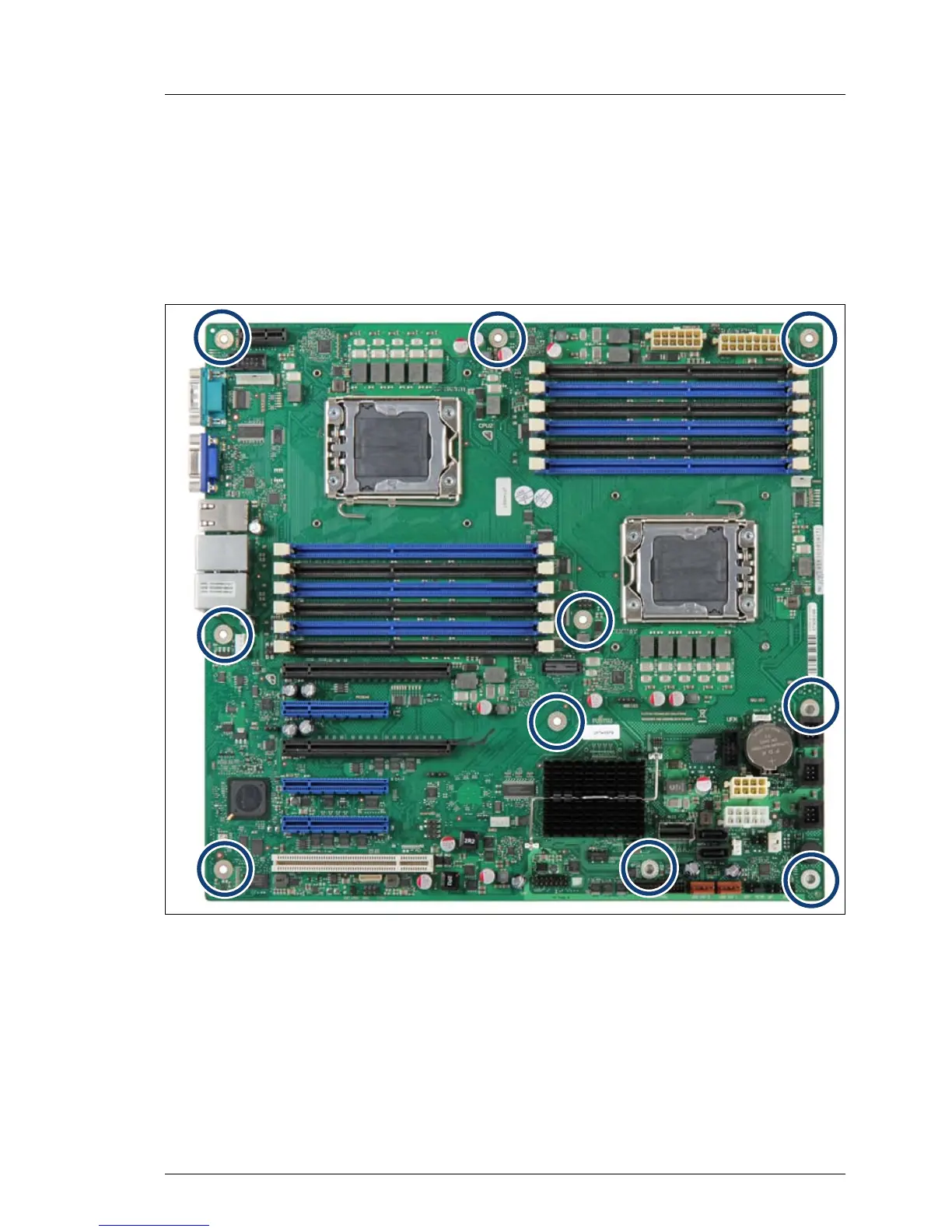

Figure 277: Removing the system board (A)
Ê Remove the ten screws (see circles).
