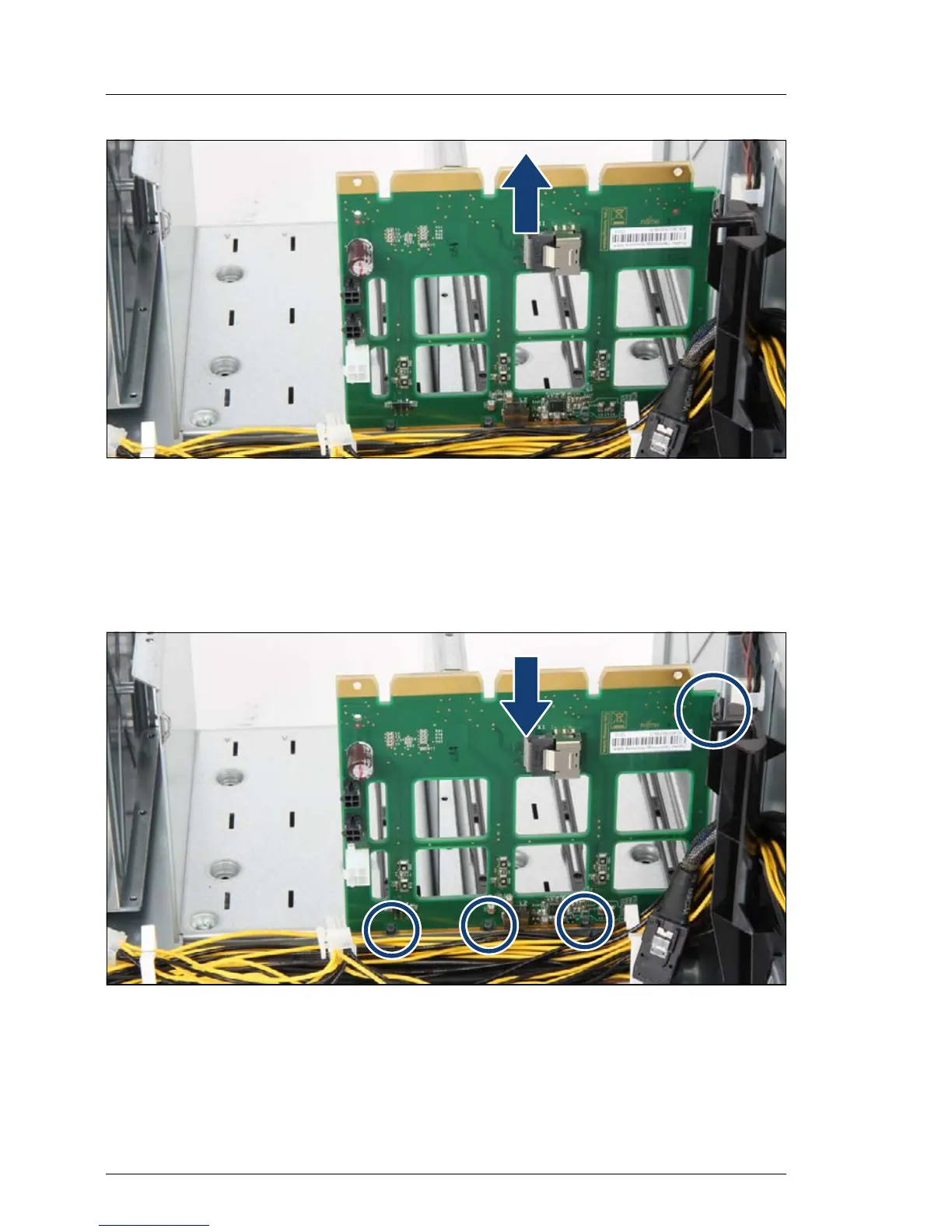

Figure 102: Removing the defective 3.5-inch HDD SAS backplane
Ê Pull up on the SAS backplane and remove it from the HDD bay in a vertical
motion.
7.3.7.3 Installing the new 3.5-inch HDD SAS backplane
Figure 103: Installing the new 4x 3.5-inch HDD SAS backplane
Ê Fit the SAS backplane into the guide on the outer wall of the HDD bay and
lower it into the bottom rim.
Ê Ensure that the 4x 3.5-inch HDD SAS backplane is properly seated into the
bottom rim and side guide (see circles).
