Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 179
Hard disk drives / solid state drives

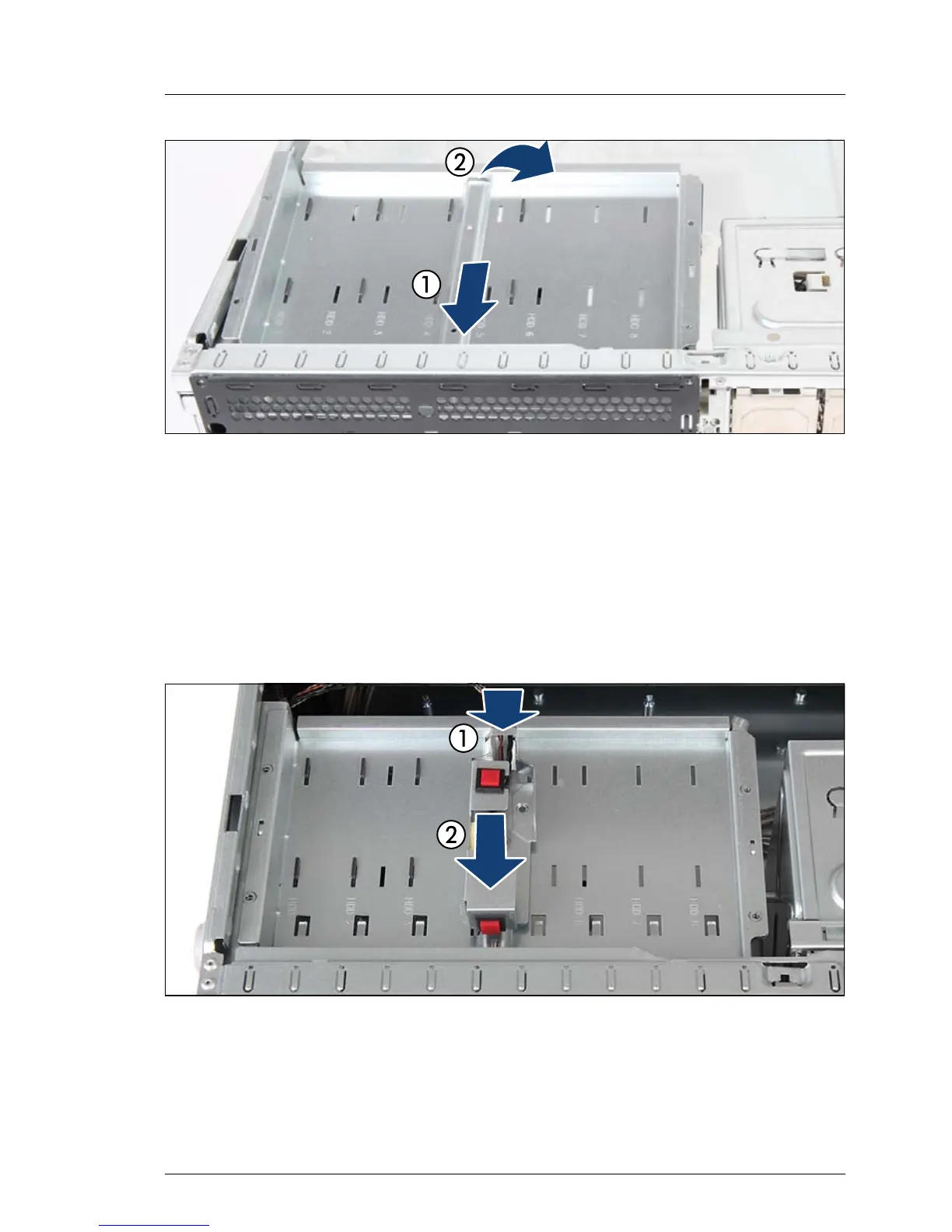

Figure 104: Installing the 3.5-inch HDD bay top cover (A)
Ê At a slight angle, fit the HDD bay top cover under the front chassis rim (1).
Ê Fold down the HDD bay top cover (2) until it is properly seated on the HDD
bays.
V CAUTION!
Ensure that the 3.5-inch HDD backplanes is properly secured in the
upper rim of the HDD bay top cover.
Figure 105: Installing the 3.5-inch HDD bay top cover (B)
Ê Place the intrusion switch holder on the HDD bay top cover as shown (1).
Ê Slide the intrusion switch holder under the front chassis rim as far as it will
go (2).
