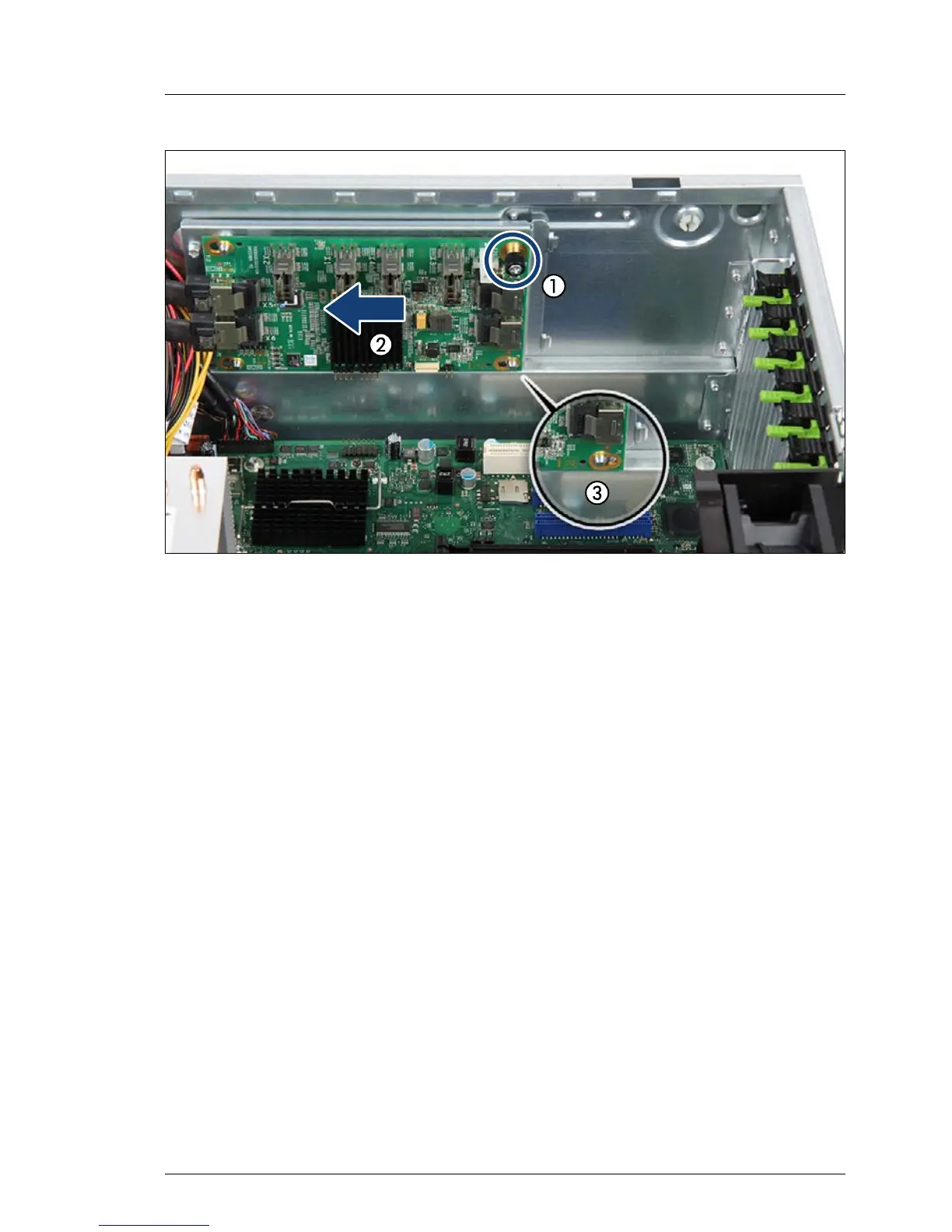

Figure 129: Removing the SAS expander board
Ê Loosen the captive knurled thumb screw on the SAS expander board (1).
Ê Slide the SAS expander board to the left as far as it will go (2).
The shoulder screw caps on the carrier will rest in the wide ends of the
keyhole slots on the SAS expander board (3).
Ê Remove the SAS expander board from the chassis.
Ê Disconnect the two SAS cables from connectors "X5" and "X6" on the SAS
expander board.
Ê If you don’t install a new SAS expander board, change SAS cabling
according to the new server configuration as described in section "Cabling
plans" on page 395.
7.5.2.3 Concluding steps
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê "Enabling BitLocker functionality" on page 101
