12.5.1.3 Installing the LSD module

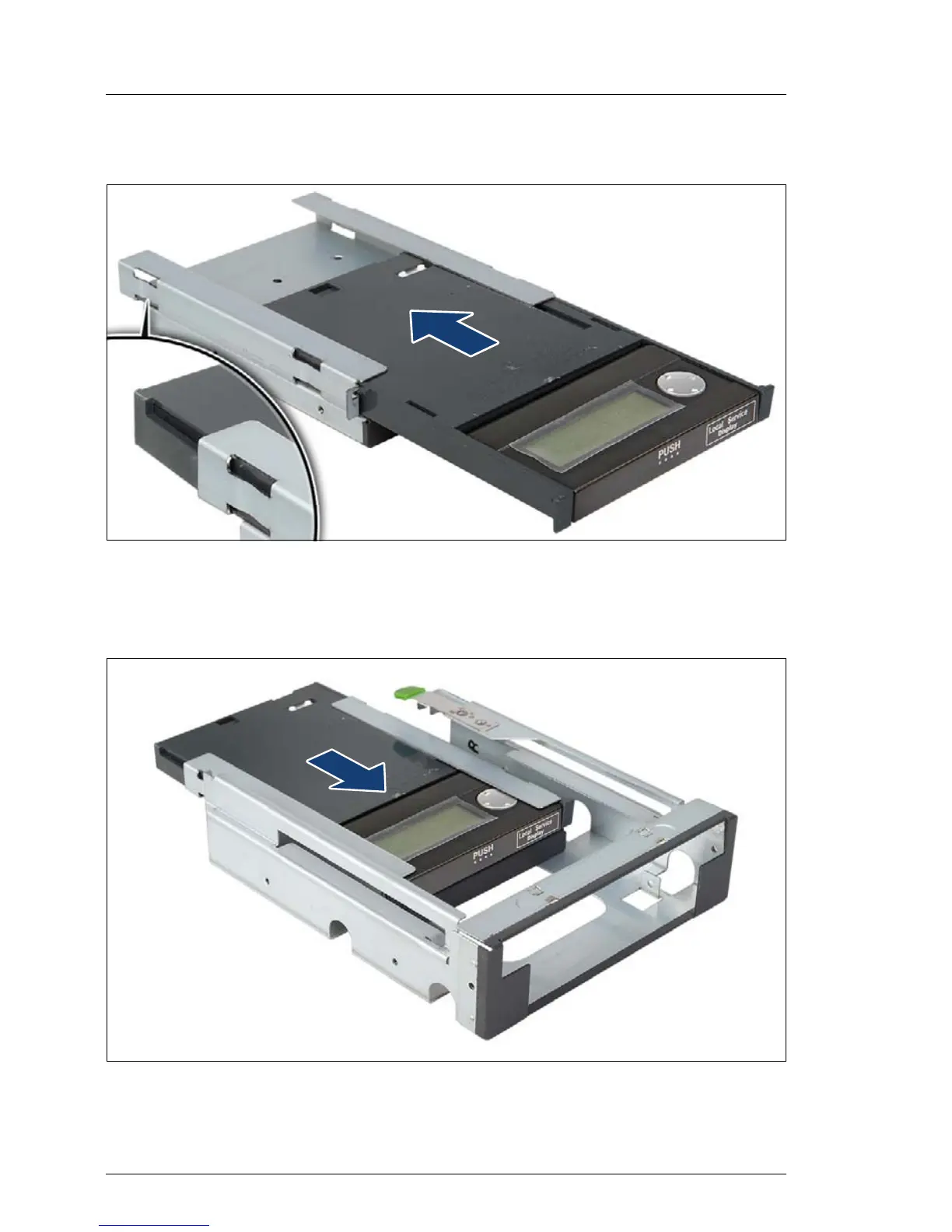

Figure 223: Inserting the LSD module into the 3.5-inch installation frame
Ê From the front, slide the LSD module into the 3.5-inch installation frame until
the locking latch (see close-up) engages.
Figure 224: Installing the 3.5-inch installation frame in the Multibay box (A)
Ê From the rear, slide the 3.5-inch installation frame into the Multibay box.
