Accessible drives and LSD

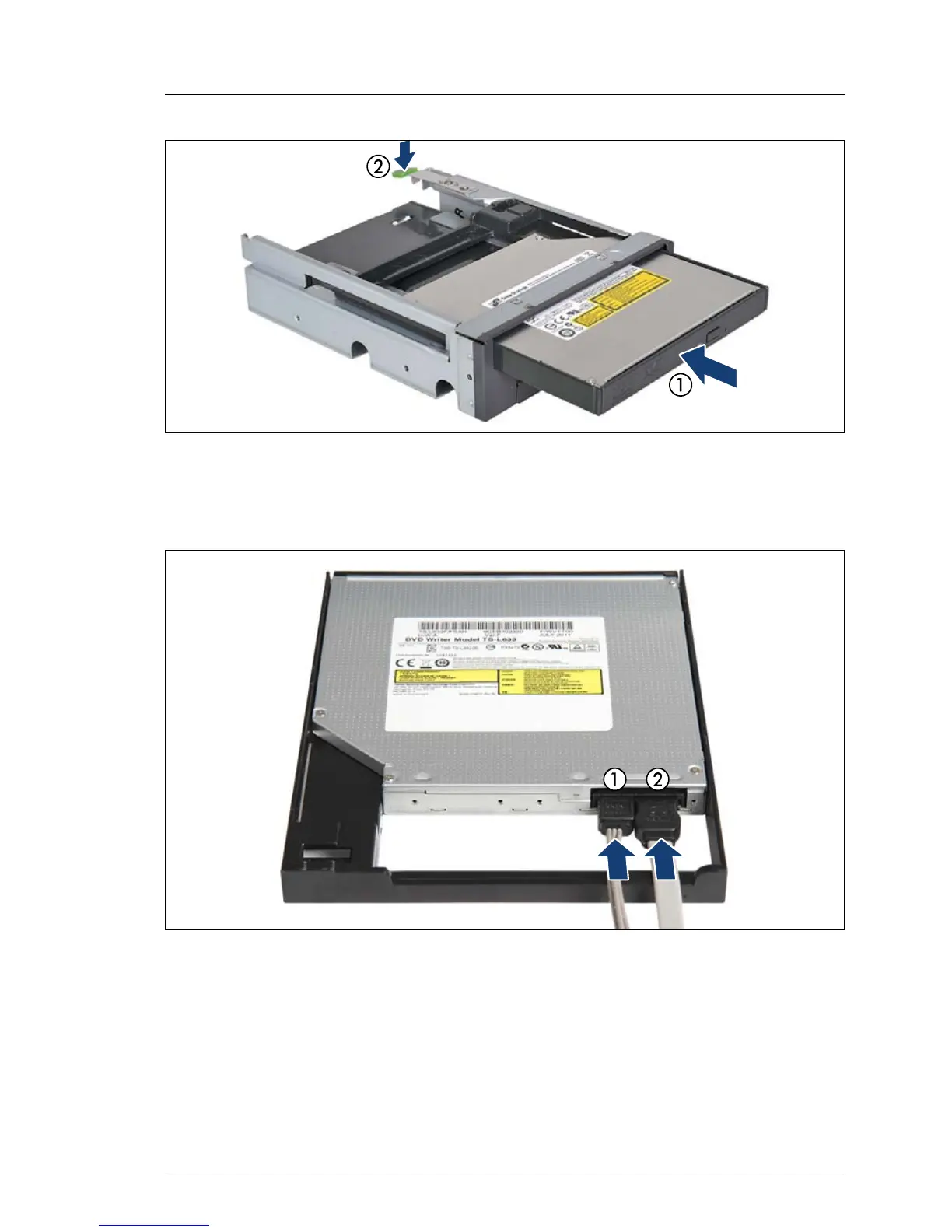

Figure 221: Mounting the slimline ODD module in the Multibay box
Ê Insert the slimline ODD module into the Multibay box (1) and push back until
the locking tab (2) engages.
Figure 222: Mounting the slimline ODD in the installation frame (B)
Ê Connect the SATA power cable (1) and the SATA cable (2) to the slimline
ODD.
