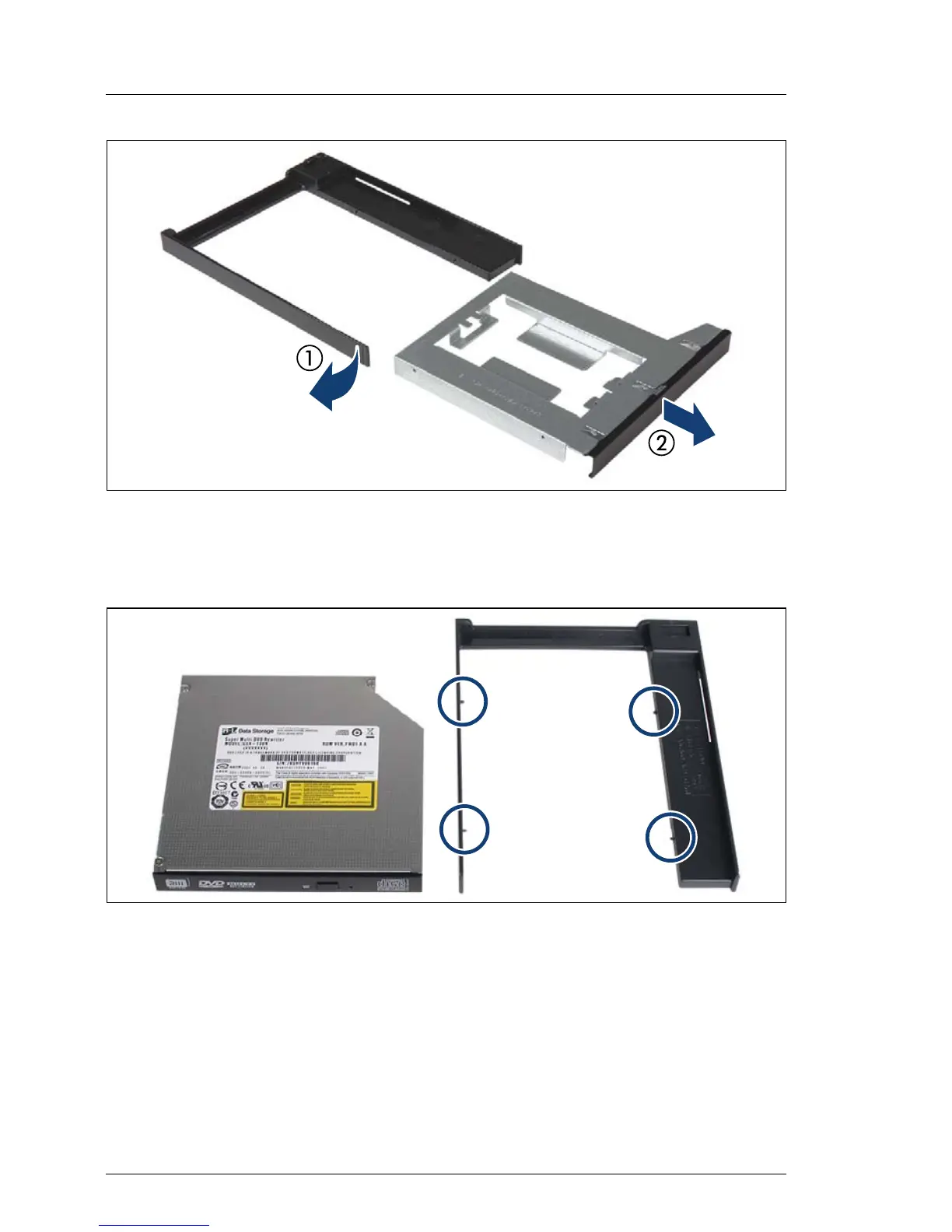

Figure 219: Disassembling the slimline ODD dummy module
Ê Disengage (1) and remove (2) the slimline ODD dummy from the slimline
ODD installation frame.
Figure 220: Mounting the slimline ODD in the installation frame
Ê Fit the slimline ODD into the slimline ODD installation frame.
Ê Ensure that the four pins on the frame (see circles) engage with the screw
holes on the drive.
Ê Ensure that the ODD is properly seated in the installation frame as shown
above.
