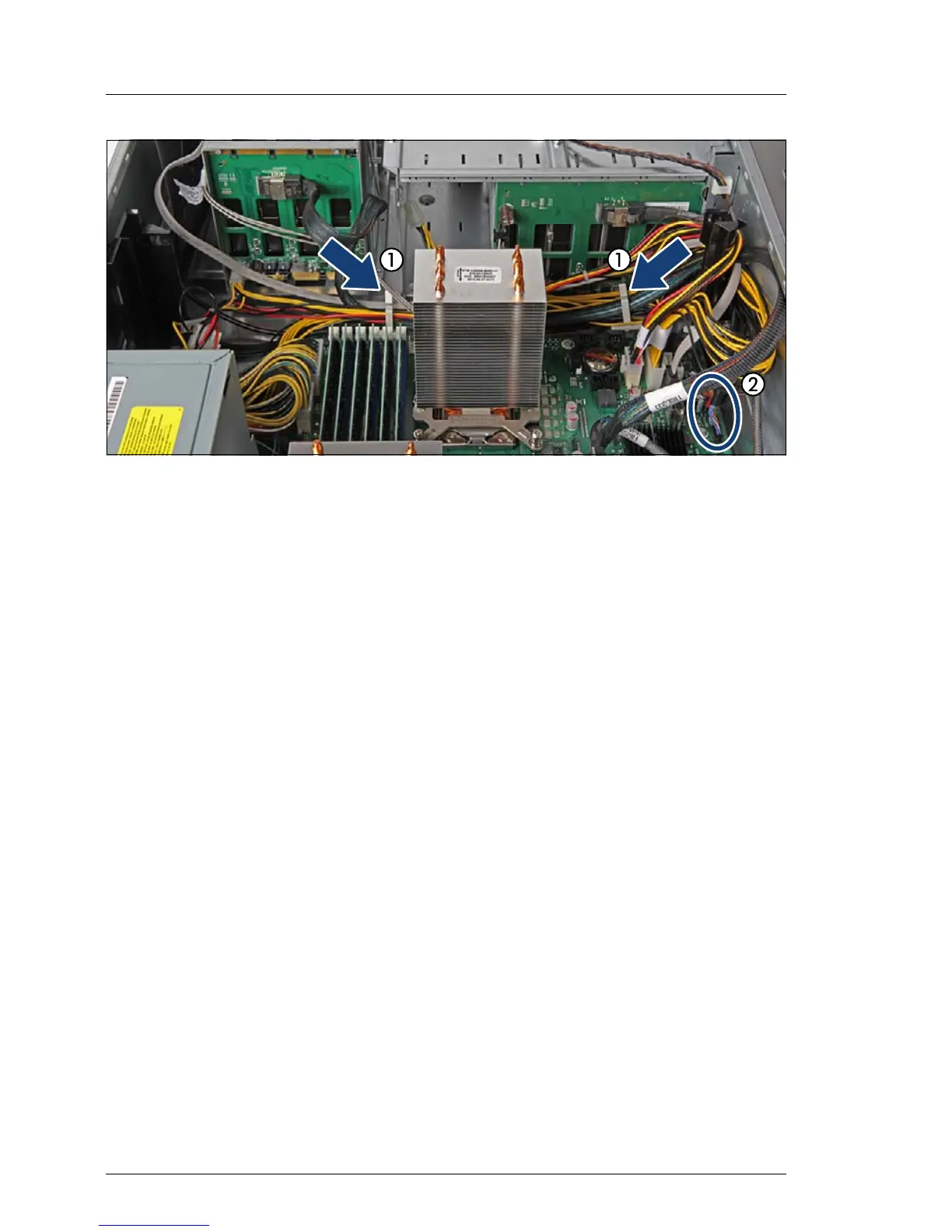

Figure 253: Securing front panel cables
Ê Run the front panel cables through the cable guides (1).
Ê Connect the front panel cable to the connector "Front Panel" on the system
board (2).
13.1.4 Concluding steps
Ê "Installing the system fan holder" on page 75
Ê "Reassembling" on page 62
Ê "Connecting the server to the mains" on page 72
Ê "Switching on the server" on page 73
Ê "Verifying system information backup / restore" on page 87
Ê Store your server’s system information on the Chassis ID EPROM
integrated into the front panel board. For further information on how to obtain
and use the ChassisId_Prom Tool, refer to section "Using the Chassis ID
Prom Tool" on page 104.
Ê "Enabling SVOM boot watchdog functionality" on page 96
Ê "Enabling BitLocker functionality" on page 101
