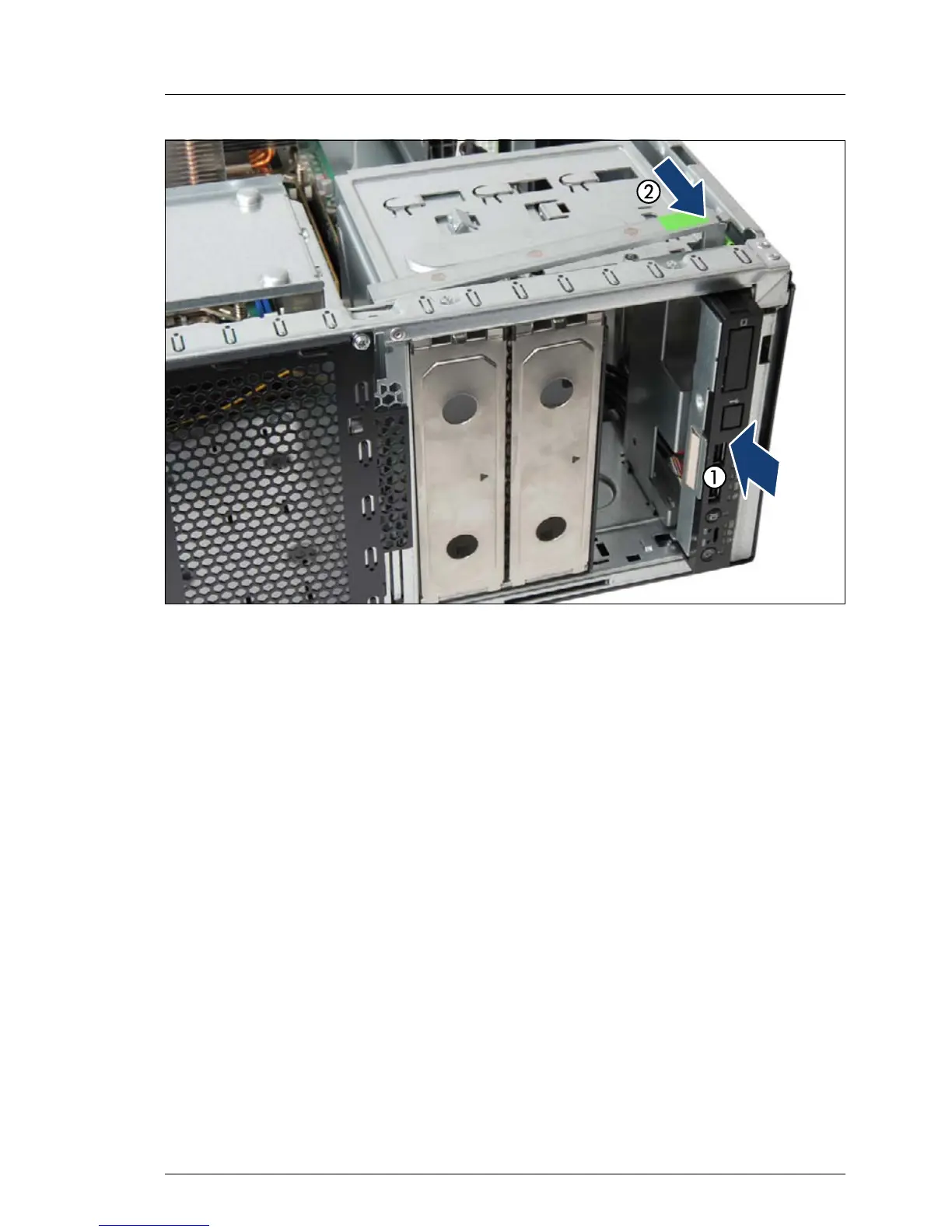

Figure 252: Installing the front panel module
Ê Insert the front panel module into its installation bay and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar (1).
Ê Close the locking bar until it locks in place (2).
I Unlocking and securing the front panel and accessible drives is
illustrated by the example of tower servers. In case of rack servers, the
accessible drive locking bar is located on the side of the drive bay (see
figure 248).
