Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 373
System board and components

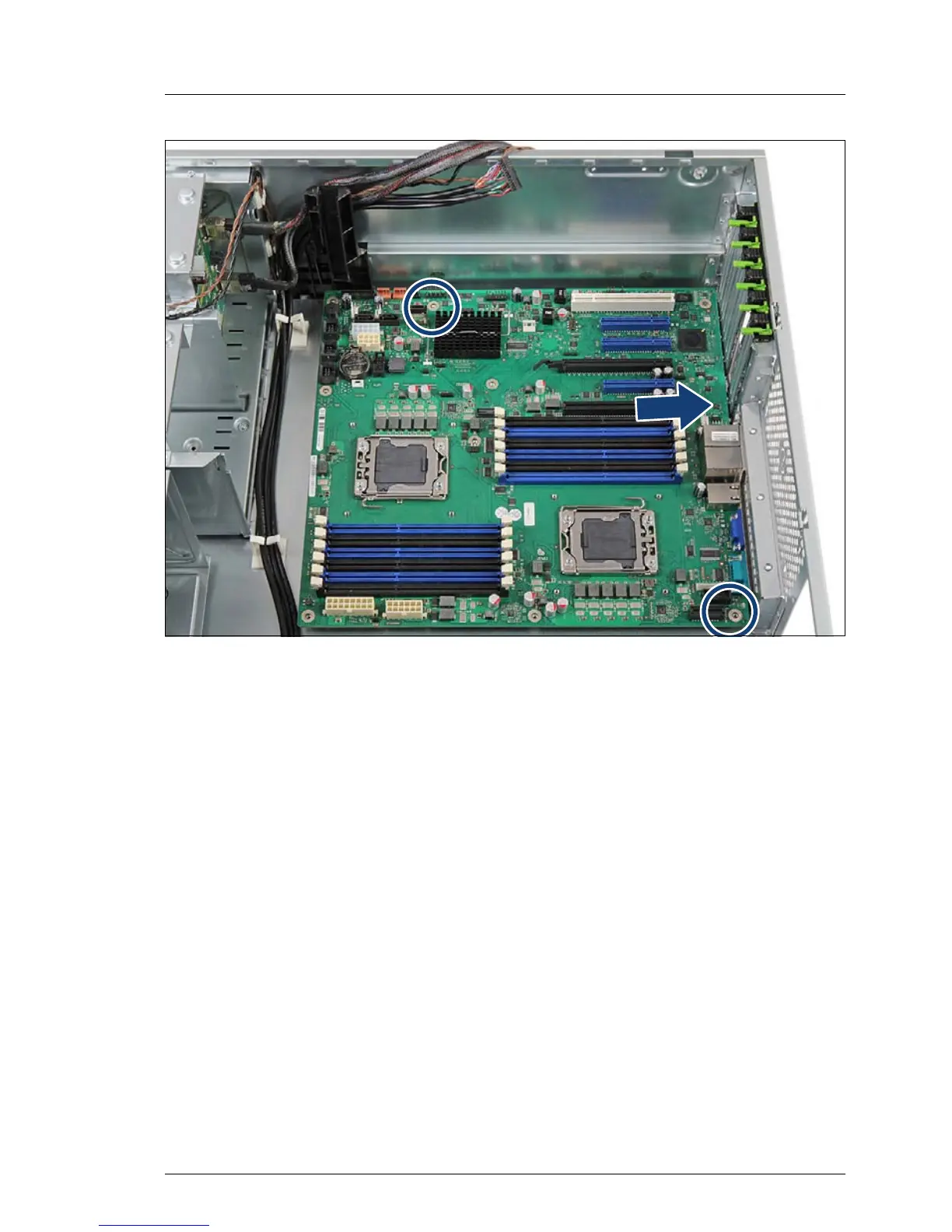

Figure 281: Installing the system board (B)
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel.
Ê Lower the system board onto the centering bolts (see circles).
Ensure that the system board is properly seated on both centering bolts.
