Fujitsu PRIMERGY TX2540 M1

326 Upgrade and Maintenance Manual TX2540 M1
Accessible drives and LSD

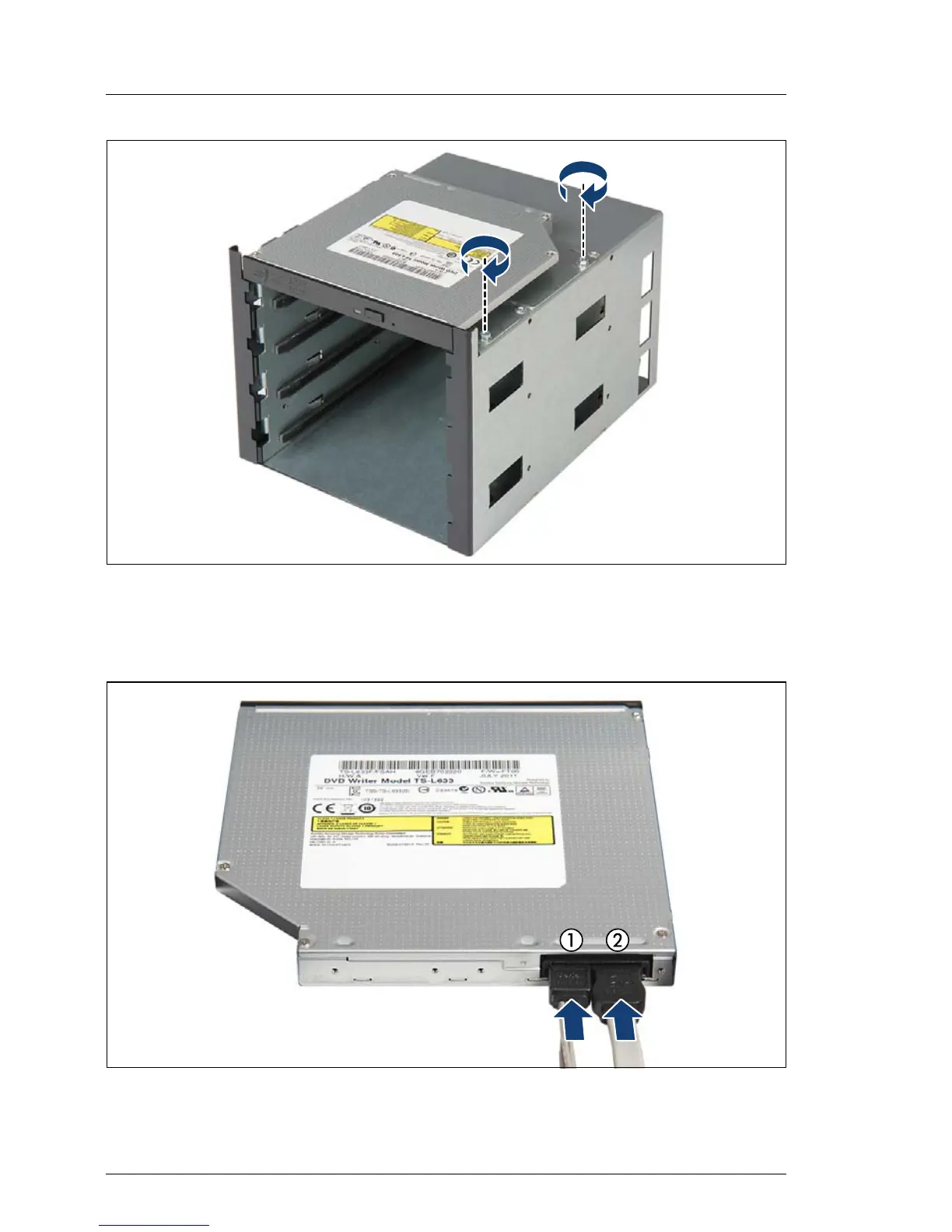

Figure 239: Installing the slimline ODD on the HDD extension box (B)
Ê Secure the slimline ODD mounting bracket on the 4x 3.5-inch HDD
extension box with two screws.
Figure 240: Connecting cables
Ê Connect the power cable (1) and the SATA cable (2) to the slimline ODD.
