Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 325
Accessible drives and LSD

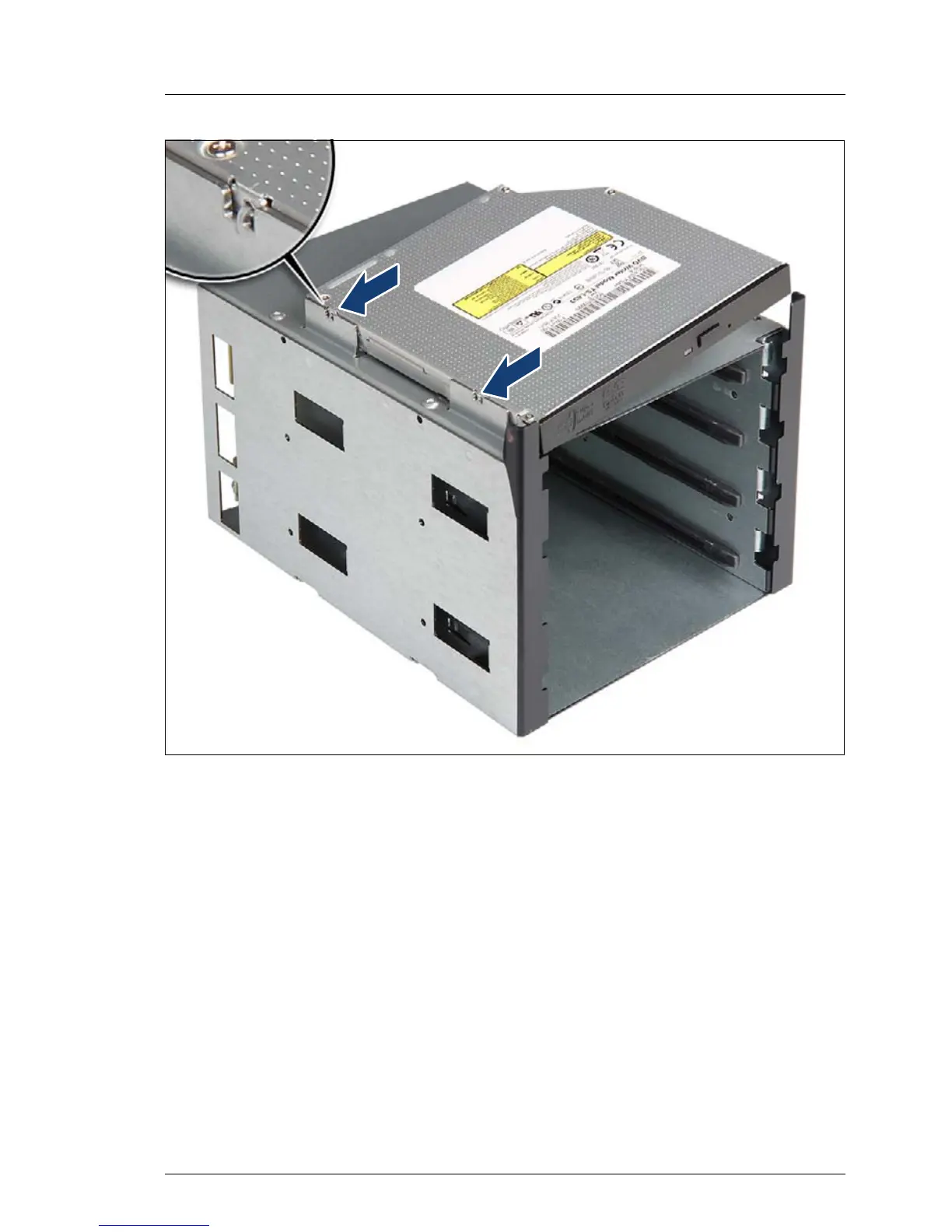

Figure 238: Installing the slimline ODD on the HDD extension box
Ê Hook the two latches on the left edge of the slimline ODD into the metal
guides on the 4x 3.5-inch HDD extension box as shown (see close-up).
Ê Fold down the slimline ODD.
