Power supply units

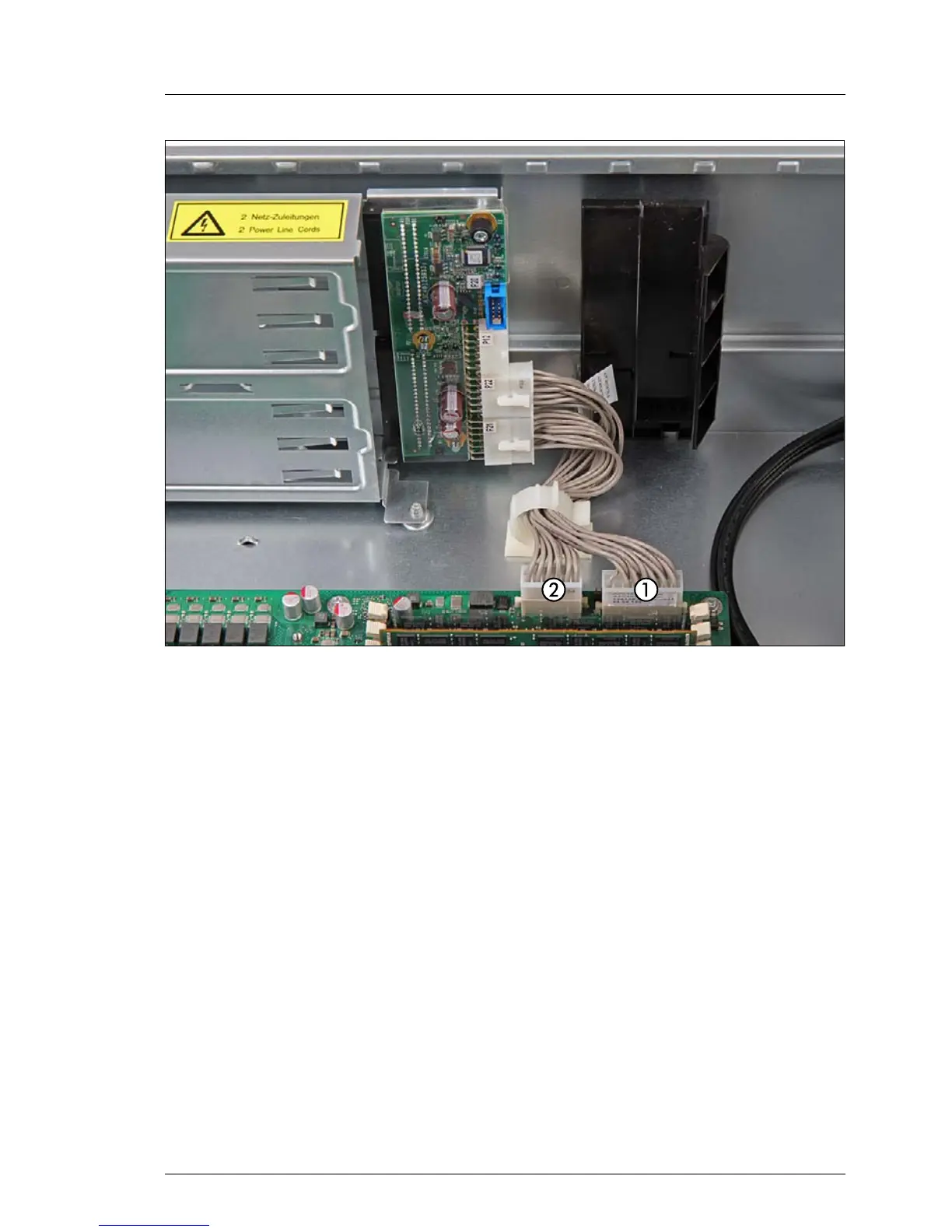

Figure 56: Connecting cables (A)
Ê Connect the power cable (1):
– connector P22 to power backplane connector "P22"
– connector P1 to system board connector "PWR 1"
Ê Connect power cable (2):
– connector P21 to power backplane connector "P21"
– connector P2 to system board connector "PWR 2"
