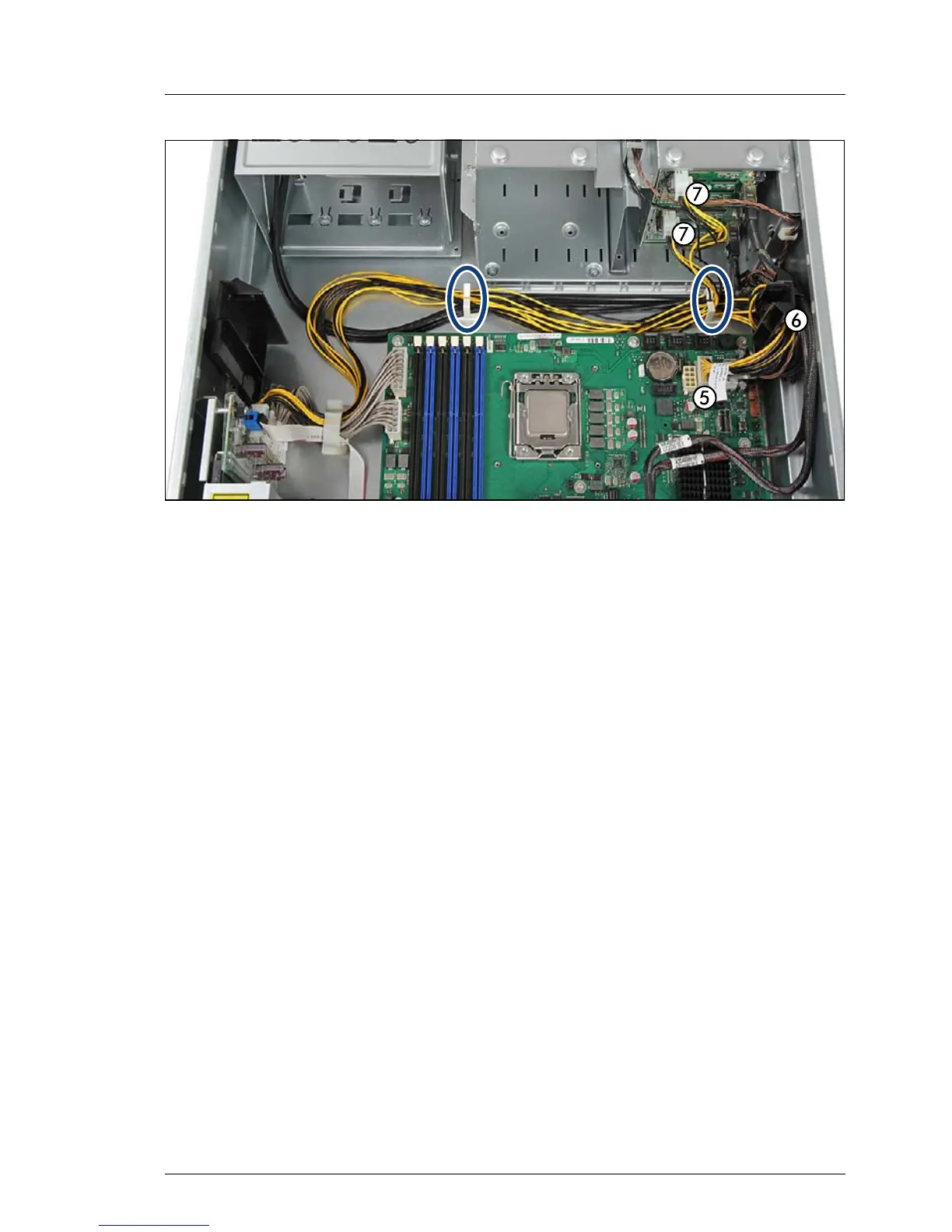

Figure 58: Connecting cables (C)
Ê Connect the power cable (4 in figure 57) to the system board and the SAS
backplane:
– 10-pin connector to system board connector "P3(PWR3)" (5)
– Run the cable through the cable guide (6) as shown.
– 2.5-inch HDD configurations (7): see section "Cabling plans" on
page 395
– 3.5-inch HDD configurations (7): see section "Cabling plans" on
page 395
Ê Run the cable through the two cable clamps (see circles).
