Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 227
Expansion cards and backup units

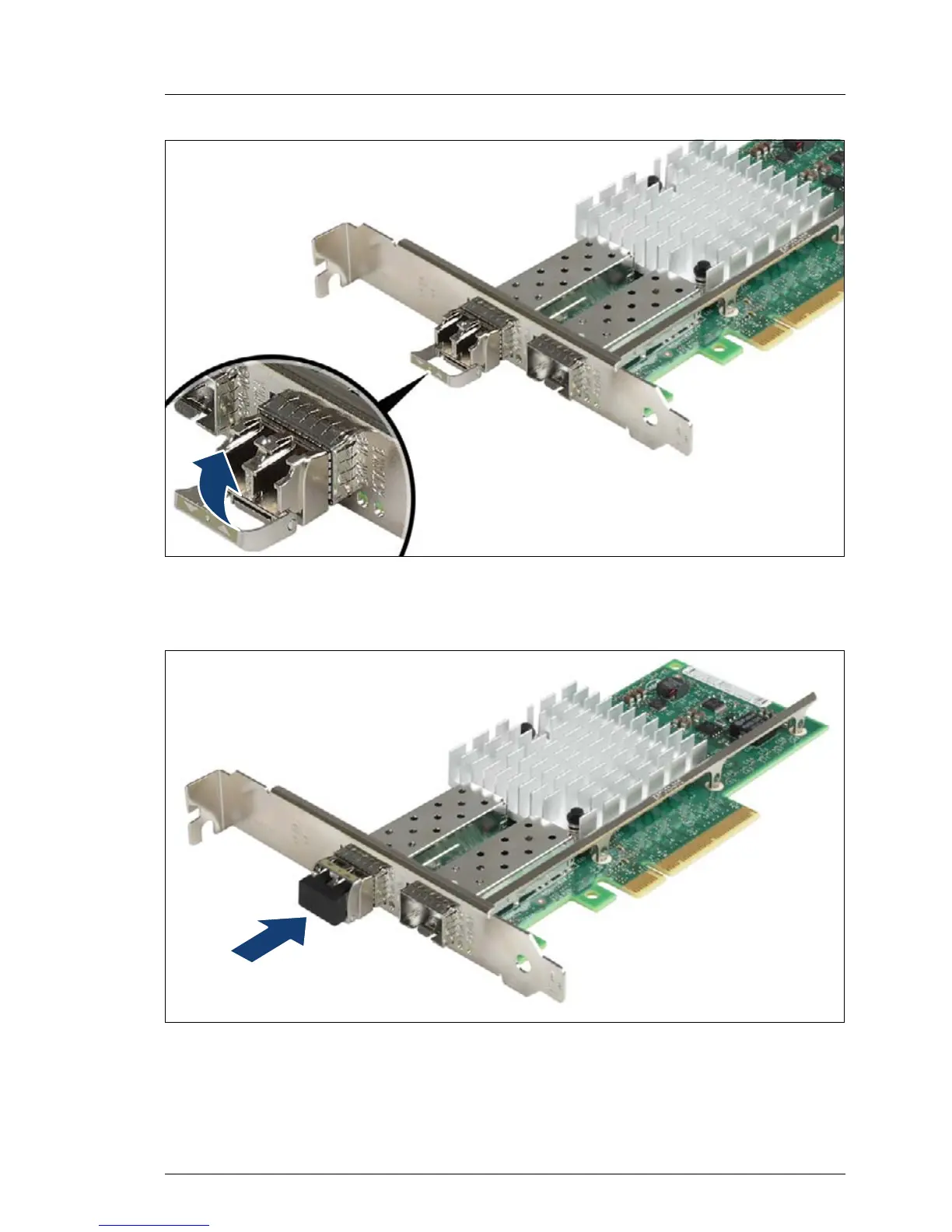

Figure 151: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 152: Attaching the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
