Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 251
Expansion cards and backup units

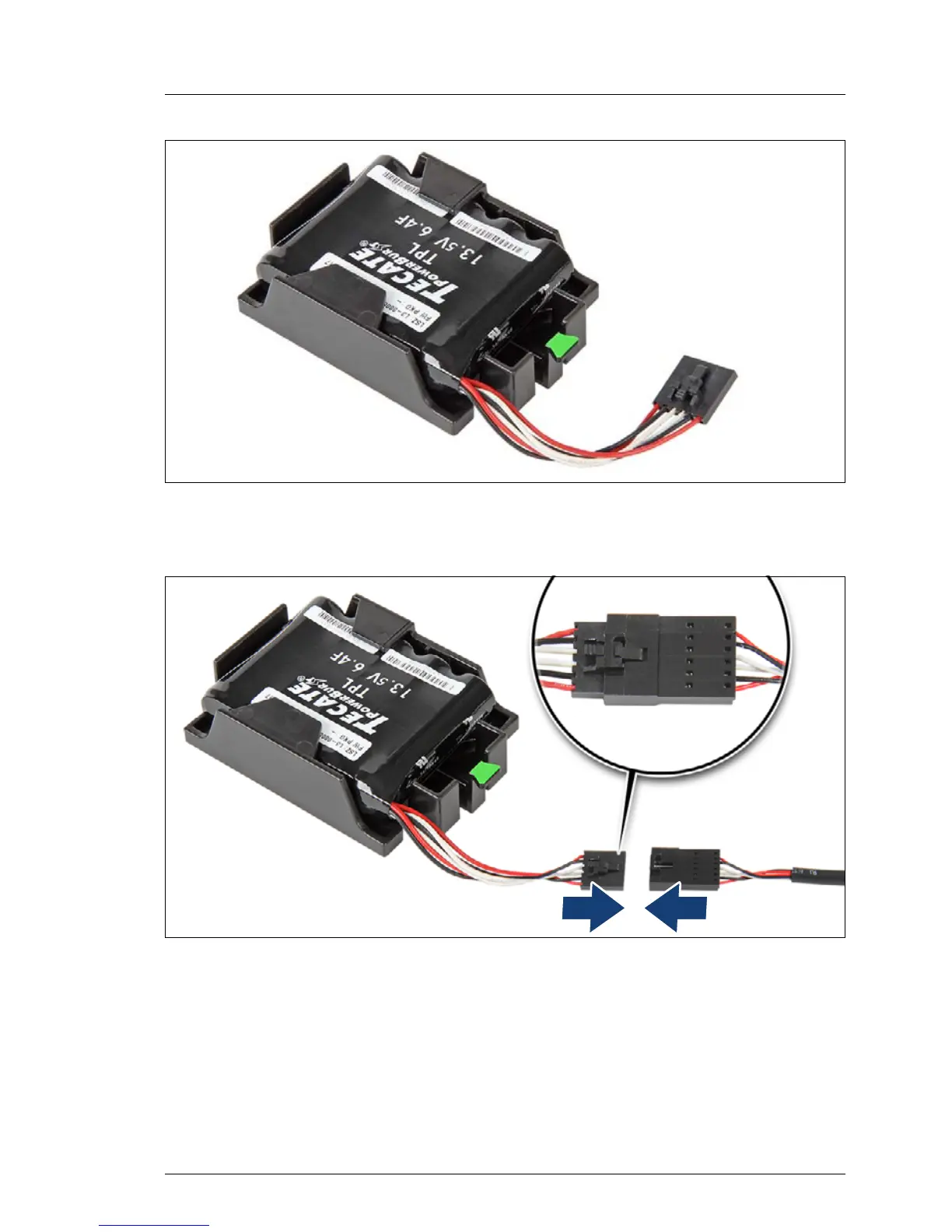

Figure 173: Installing the FBU in the holder (B)
Ê Ensure that the FBU is properly seated in the holder.
Figure 174: Connecting the FBU cable
Ê Connect the FBU cable to the FBU.
