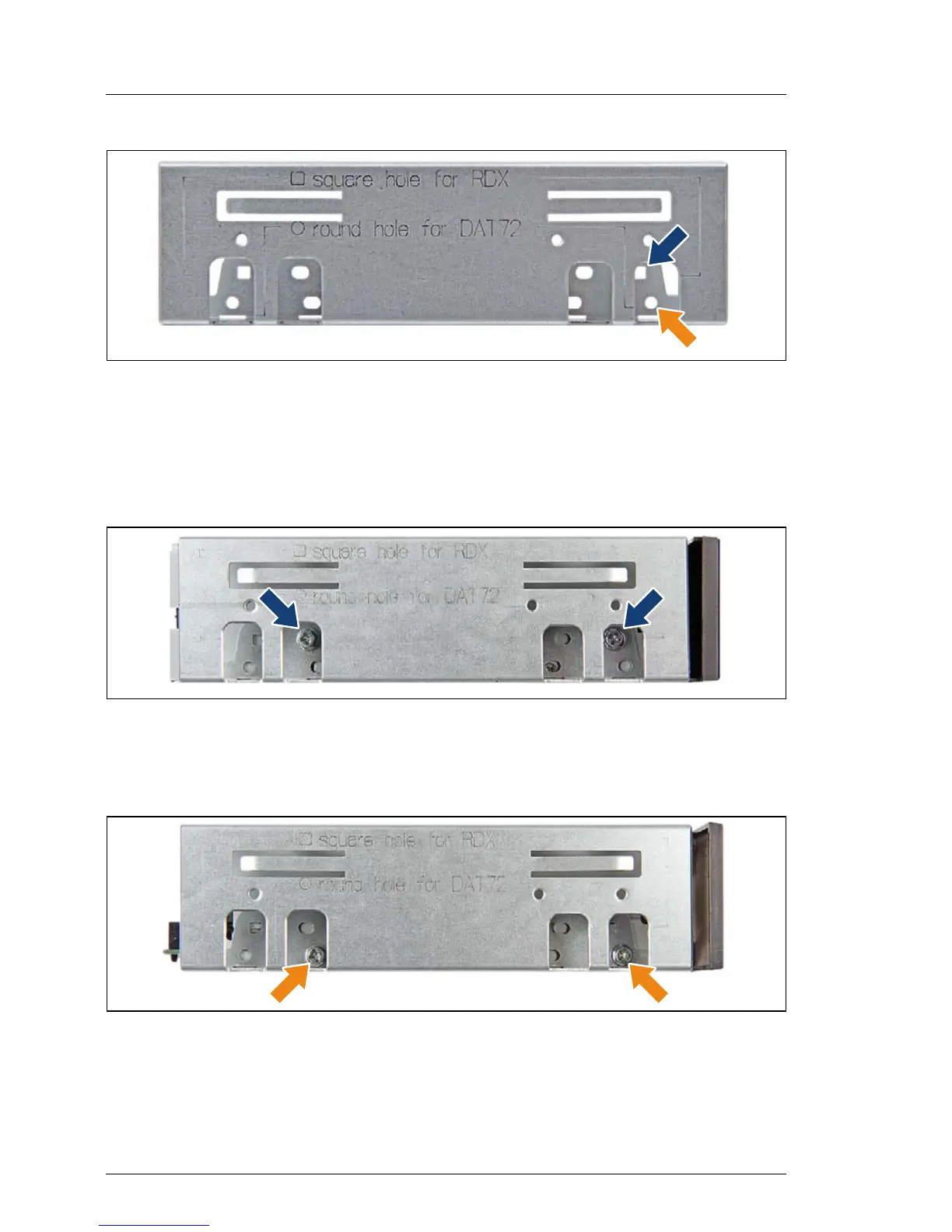

Figure 210: Screw holes on backup drive mounting brackets
Ê Note the screw hole description stamped onto the mounting bracket:
Ê Use the square screw hole for RDX backup drives (see blue arrow).
Ê Use the round screw holes for DAT72 backup drives (see orange arrow).
Figure 211: Securing mounting brackets to an RDX backup drive
Ê Secure the backup drive mounting brackets to the RDX backup drive with
two screws per bracket as shown.
Figure 212: Securing mounting brackets to a DAT72 backup drive
Ê Secure the backup drive mounting brackets to the DAT72 backup drive with
two screws per bracket as shown.
