I Unlocking and securing the front panel and accessible drives is
illustrated by the example of tower servers. In case of rack servers, the
accessible drive locking bar is located on the side of the drive bay. In this
case, proceed as follows:

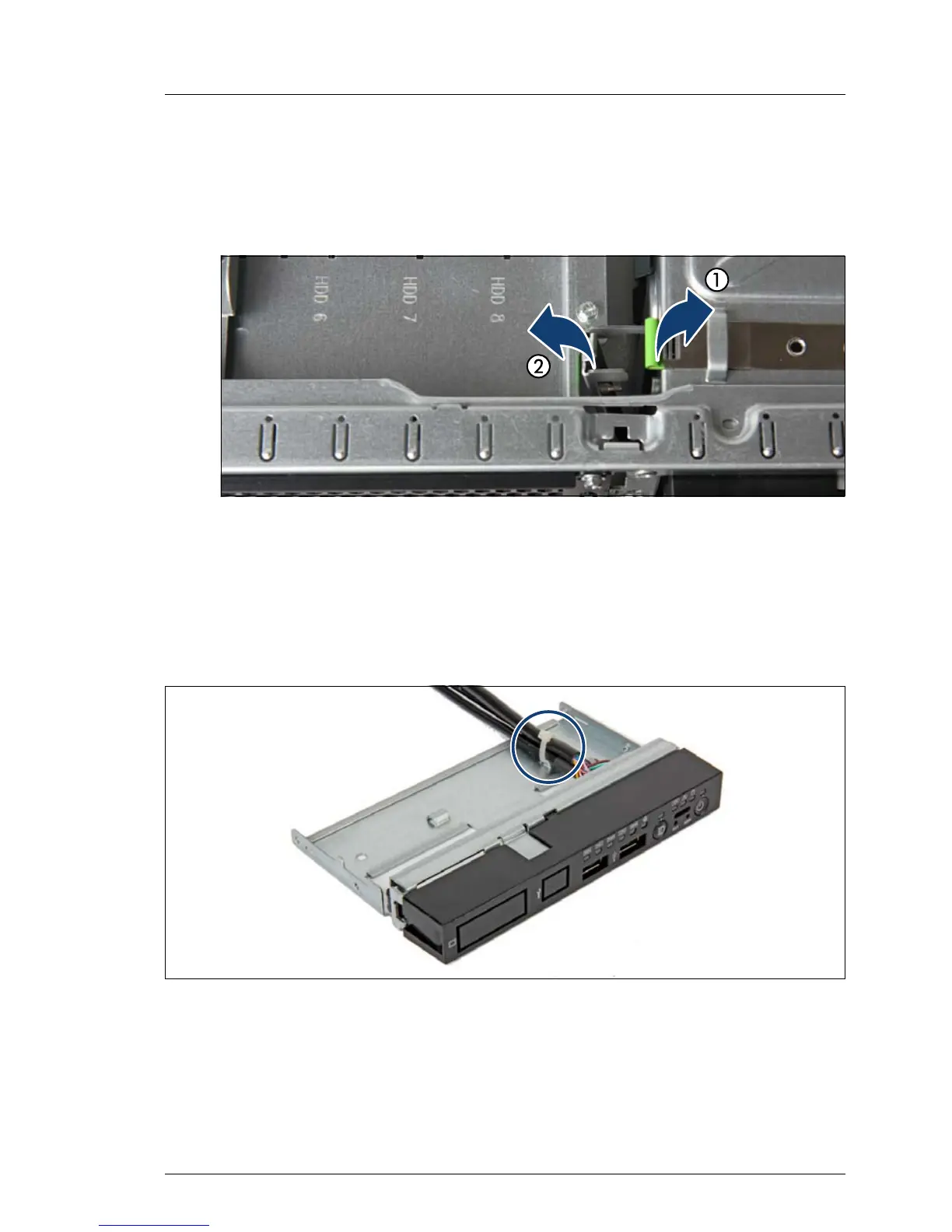

Figure 248: Removing the front panel module (rack systems)
Ê Pull up on the locking latch to disengage the accessible drive locking
bar (1).
Ê Fold out the accessible drive locking bar (2).
Ê Remove the front panel module.
Figure 249: Front panel module - cable tie
Ê If necessary, cut the cable tie and remove it. The cable tie must not be
replaced.
