Fujitsu PRIMERGY TX2540 M1

TX2540 M1 Upgrade and Maintenance Manual 55
Basic hardware procedures

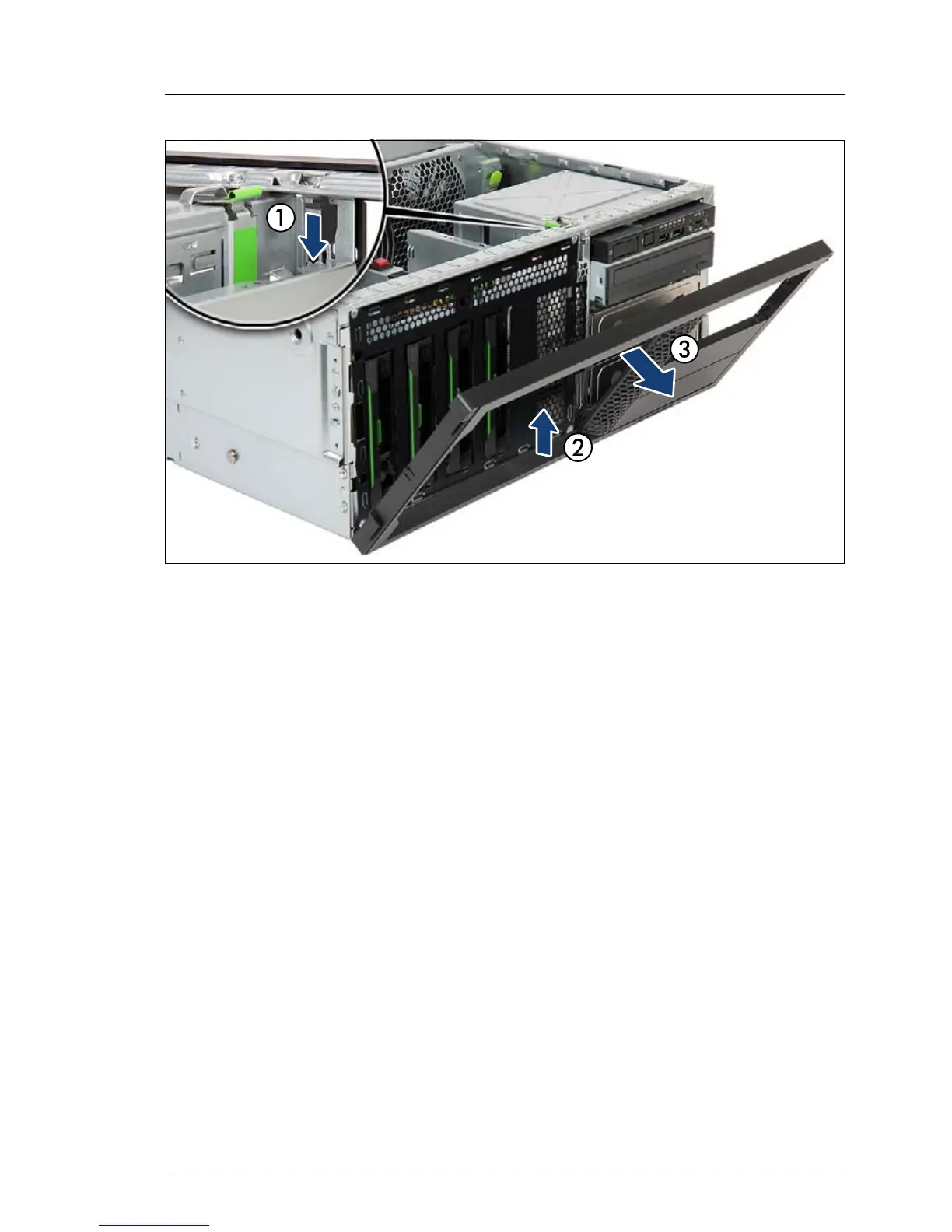

Figure 8: Removing the rack front cover (B)
Ê Press down on the upper locking latch (1) while slightly folding out the rack
front cover.
Ê Press up on the rack front cover to disengage the lower locking latch (2).
Ê Carefully fold open and remove the rack front cover (3).
