Basic hardware procedures

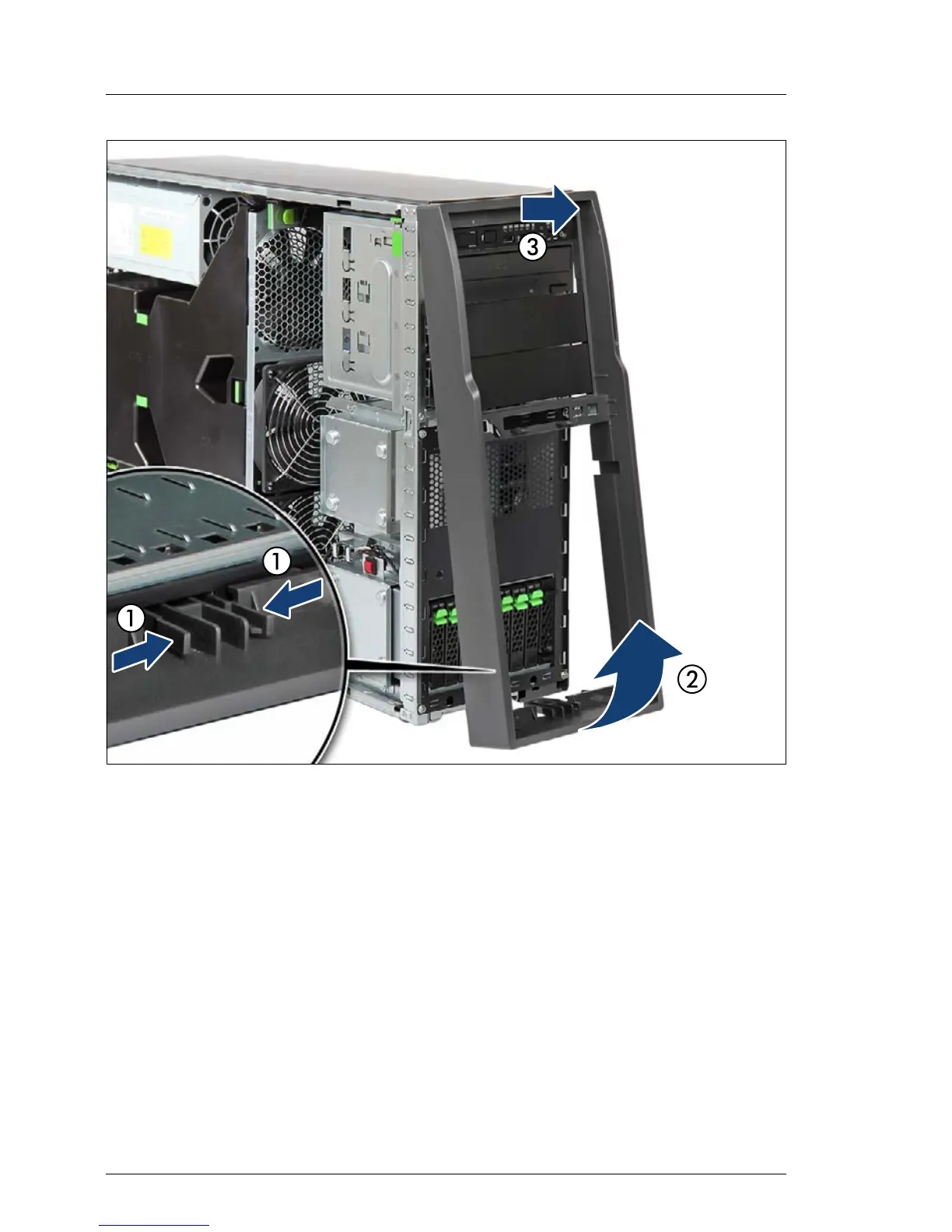

Figure 15: Removing the front cover (tower server)
Ê Pinch the locking clips to disengage the front cover (1) while slightly pulling
out.
Ê Carefully fold out the bottom end of the front cover (2).
Ê Unhook and remove the front cover (3).
