Preparing the System for Use
3-42 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Activating the Probe
To activate the probe, select the appropriate probe from the
probe indicators on the Touch Panel.

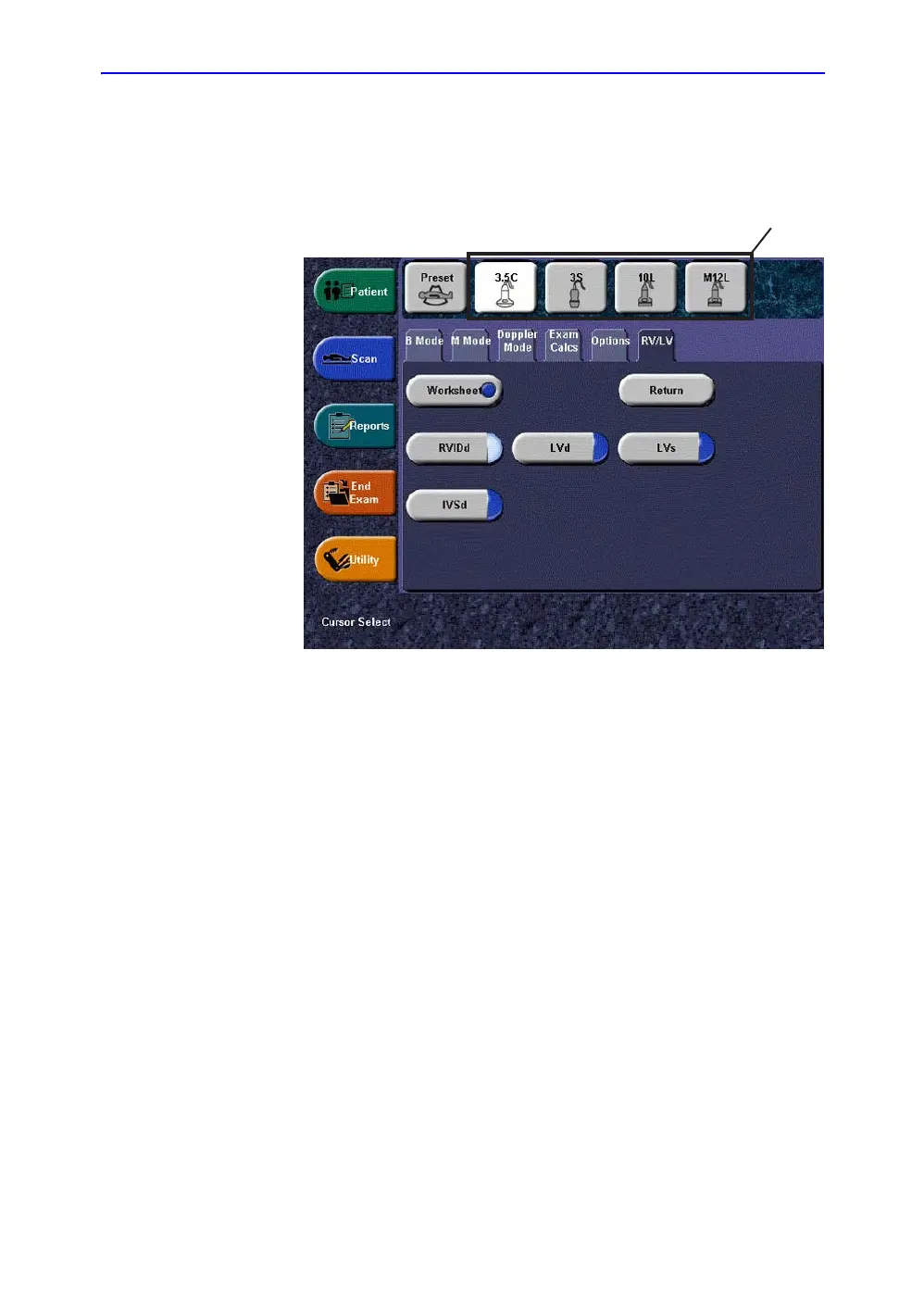

Figure 3-22. Probe Indicators
1. Probe Indicators
The probe's default settings for the mode and selected exam are
used automatically.
Disconnecting the Probe
Probes can be disconnected at any time. However, the probe
should not be active when disconnecting the probe.
• Ensure the probe is deactivated. Deactivate by selecting
another probe or pressing Freeze.
• Move the probe locking handle counterclockwise.
• Pull the probe and connector straight out of the probe port.
• Carefully slide the probe and connector away from the
probe port and around the right side of the keyboard.
• Ensure the cable is free.
• Be sure that the probe head is clean before placing the
probe in its storage box or a wall hanging unit.
